Mounting for digital signage works by securing, positioning, and servicing displays with purpose-built hardware that meets load, safety, and accessibility requirements while preserving sightlines and enabling fast maintenance.
Mounting is installed by anchoring the correct mount type to a verified substrate with rated fasteners, aligning and securing the display, providing power and signal strain relief, and documenting torque and safety tethers.
The best mounting is chosen by matching environment, screen size/weight, service access needs, building constraints, and code requirements to a vetted product family with proven support.
- What Is Digital Signage Mounting and How Does Mounting Fit the Signage Stack?
- What Mounting Types Should Be Considered, and When Is Each Mounting Appropriate?
- How to Install Digital Signage Mounts?
- How to Maintain Digital Signage Mounts?
- How Do Mounting Safety, Compliance, and Accessibility Guide Mounting Choices?
- How Do Mounting Substrates and Anchors Determine Mounting Reliability?
- How Does Mounting Integrate Power, Cabling, and Thermal Management During Mounting?
- Which Mounting Solution Is Best for the Scenario Today?
- What Is the Best Signage Mount for Single Wall-Mounting in Indoor Retail?
- What Is the Best Signage Mount for High-Bright Window-Display Mounting?
- What Is the Best Signage Mount for Menu-Board Mounting Across Multiple Screens?
- What Is the Best Signage Mount for Video-Wall Mounting in Lobbies?
- What Is the Best Signage Mount for LED Wall Mounting in Auditoriums?
- What Is the Best Digital Signage Mount for Outdoor Kiosk Mounting?
- What Is the Best Signage Mount for Ceiling-Mounted Mounting Over Queues?
- What Is the Best Signage Mount for Mobile Cart Mounting and Event Mounting?
- What Is the Best Digital Signage Mount for Each Environment?
- What Is the Best Mount for Hotel Digital Signage?
- What Is the Best Signage Mount for Restaurant Digital Signage?
- What Is the Best Signage Mount for Gym Digital Signage?
- What Is the Best Signage Mount for Café Digital Signage?
- How to Create A Fast, Field-Ready Mounting Checklist?
- How to Decide Between Video-Wall Mount Families?
- How Do Mounting Vendors, Warranties, and SLAs Affect Mounting Risk?
- How Do Mounting Installation and Commissioning Verify Mounting Quality on Day One?
- How Does Mounting Maintenance Extend Life and Reduce Callouts?
- What Mounting FAQs Do Teams Ask Before and After Installation?
- What Mounting Handles A 55–65″ Mixed Fleet?
- What Mounting Protrusion Is Allowed In Corridors?
- Can Mounting Support Portrait Rotation?
- Which Anchor Works For Hollow Block?
- How Often Should Mounting Be Re-Torqued?
- What Mounting Works On Curved Walls?
- Does Mounting Need A UL Listing?
- How Far Can HDMI Run Without Extension?
- Takeaway
What Is Digital Signage Mounting and How Does Mounting Fit the Signage Stack?
Digital signage mounting is the structural signage hardware and accessories that hold, aim, secure, and service screens so content remains readable, safe, and available during full operating hours. Mounting fits the signage stack between the built environment and the display/player layer, providing the mechanical interface that protects people, equipment, and uptime while supporting cable, power, and thermal practices.
Mounting objectives for digital signage include:
- Safety And Code Compliance
- Sightline And Viewing-Angle Optimization
- Serviceability And Rapid Access
- Aesthetics And Cable Concealment
- Repeatability And Fleet Consistency
- Vibration Control And Alignment Retention
- Anti-Theft Protection And Tamper Resistance
What Mounting Types Should Be Considered, and When Is Each Mounting Appropriate?
The mounting types to consider are wall, ceiling, floor-stand, hanging/suspended, window, desktop, kiosk/totem, video-wall, LED cabinet/frame, bar/shelf-edge, and projector/UST; each is appropriate when its geometry, load rating, and service access model align with the venue, audience sightlines, and building constraints.
Mounting Type Comparison → Type | Best Use | Pros | Cons | Service Access
| Type | Best Use | Pros | Cons | Service Access |
|---|---|---|---|---|
| Wall Fixed/Tilt | Retail walls, corridors | Slim profile, simple, cost-effective | Limited access behind | Lift-off or hinge kits |
| Wall Pop-Out (LCD Videowall) | Lobbies, command walls | Micro-adjust, rapid access | Higher cost, deeper profile | Pop-out scissor arms |
| Ceiling Single/Bar | Queues, counters, menu boards | Clear sight over crowds | Requires structural checks | Drop-length, tilt/level |
| Floor-Stand/Cart | Glass walls, events | No wall penetrations, mobile | Floor space used | Rear/service panels |
| Hanging/Suspended | Atriums, windows | Minimal clutter, high visibility | Rigging complexity, sway | Front service or rotation |
| Kiosk/Totem | Wayfinding, outdoor | ADA framing, vandal-resistant | Heavy, slab anchors | Hinged/door service |
| LED Frame/Cabinet | Large canvases | Planarity, datum control | Engineering, cost | Front-service tiles |
| Bar/Shelf-Edge | Aisles, endcaps | Eye-level promos | Cable concealment | Quick-release rails |
| Projector/UST | Large canvases, temp | Light, large image | Ambient light limits | Drop plate/slide rails |

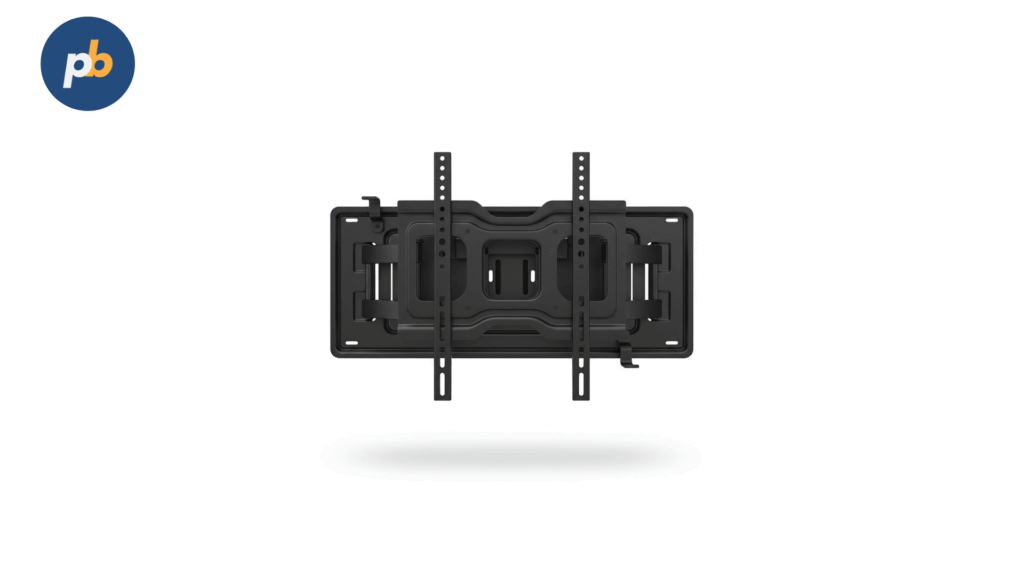

How Does Wall Mounting Handle Indoor Retail Mounting vs Corporate Mounting?
Wall mounting serves indoor retail by using tilt mounts to combat glare and conceal cables within shallow raceways, and serves corporate spaces with fixed or micro-adjust mounts that hold alignment for long dwell content and branded aesthetics.
Wall-mount preflight for digital signage mounting includes:
- VESA Pattern Verification And Weight Margin
- Stud/CMU Location And Edge Distances
- ADA Protrusion Check And Egress Clearance
- Cable Path And In-Wall Box Placement
- Tilt Angle Plan And Reflections Survey
- Anchor Type Selection And Torque Targets
- Security Hardware And Anti-Lift Bars

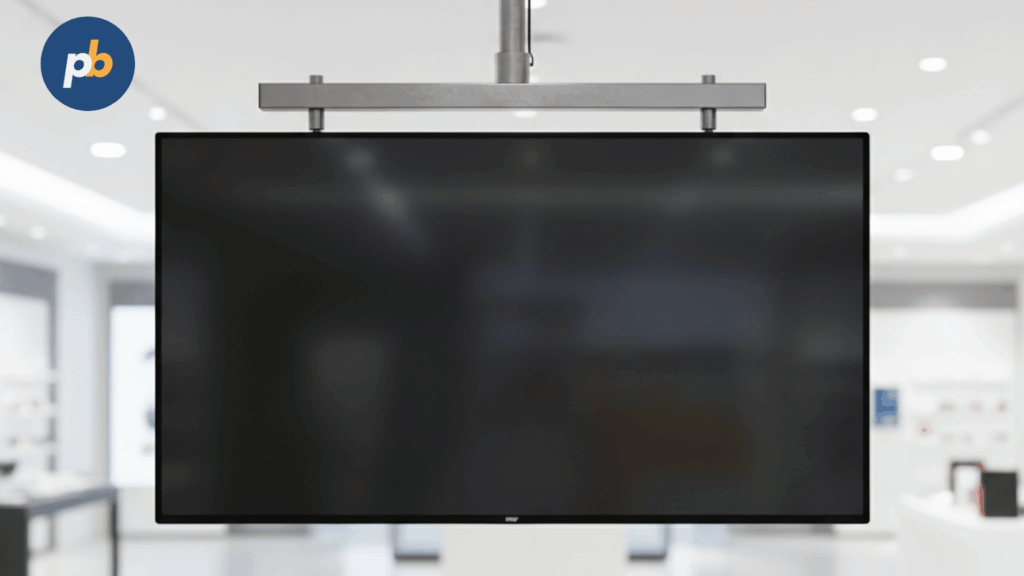

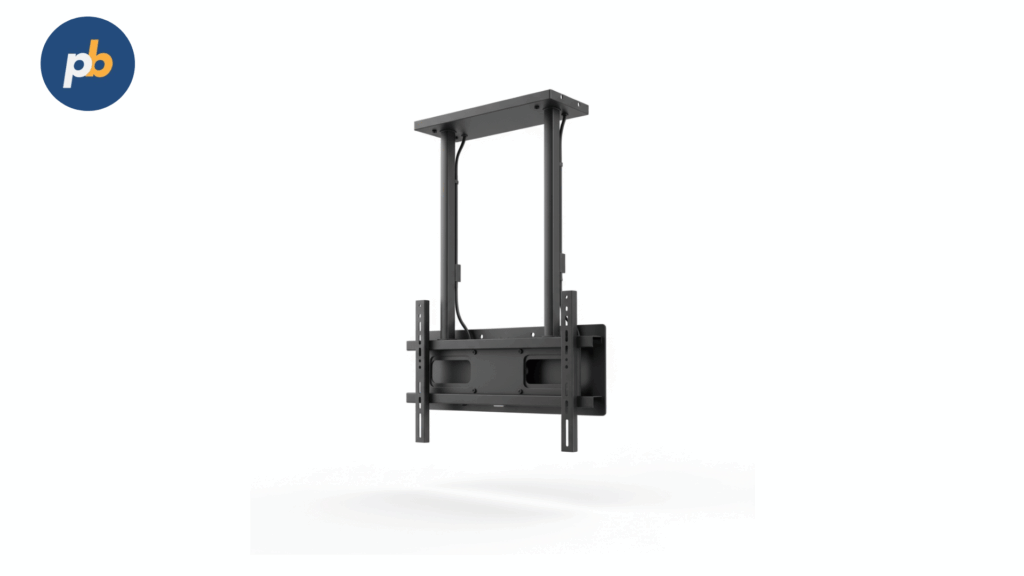

How Does Ceiling Mounting Support Open-Space Mounting and Menu-Board Mounting?
Ceiling mounting supports open spaces and menu boards by setting drop lengths for clear sight over crowds, using Unistrut or modular bars to level multi-screen runs, and bracing for sway where local code or seismic requirements apply. According to AV industry practice, modular ceiling kits and menu-board bars are widely used for precise screen leveling and continuous tilt alignment.
Ceiling attachment checks for digital signage mounting include:
- Structure Verification And Load Path Confirmation
- Drop Length Calculation And Deflection Limits
- Sway Brace Or Guy Wire Requirement Review
- Level Rail Setup And Fine-Tune Plan
- Conduit Entry And Cable Strain Relief
- Dual Safety Tether Installation
- Fire-Stop And Plenum Compliance Review
How Does Floor-Stand Mounting Solve Glass Wall Mounting and Landlord-Restricted Mounting?
Floor-stand mounting solves glass walls and restrictive leases by shifting loads to weighted or bolted bases, minimizing penetrations while providing service access through rear panels or hinged frames. Commercial carts add mobility, operator safety, and rapid redeployments in events or seasonal layouts.
Anti-tip checklist for floor-stand mounting includes:
- Base Footprint And Weight Verification
- Caster Brake And Wheel Diameter Confirmation
- Center-Of-Gravity And Tilt-Angle Limits
- Handle Placement And Push-Path Clearance
- Cable Management And Reel Selection
- Load Rating And Screen Height Limit
- Access Panel Lock And Spare Fastener Kit

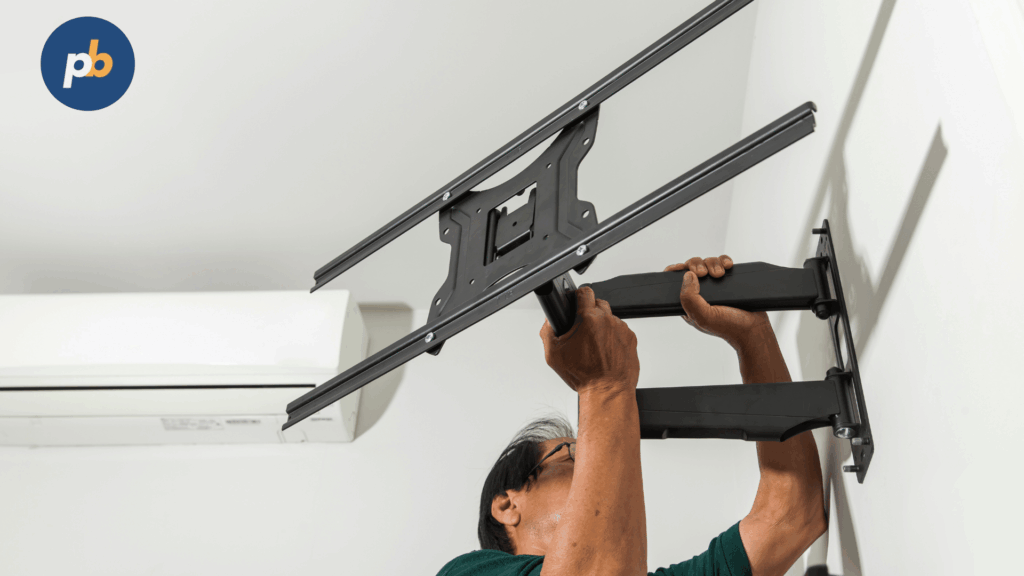

How to Install Digital Signage Mounts?
Install signage mounts by verifying the substrate and load, choosing rated anchors per the wall or ceiling material, using the mount maker’s template and torque specs, and finishing with micro-adjust alignment and acceptance photos. A simple, consistent method prevents rework, eliminates “no signal” cable strain, and keeps protrusions within corridor limits.
Installation Steps for Digital Signage Mounts include:
- Confirm Structural Substrate And Load Ratings
- Select Rated Anchors And Follow Manufacturer Torque Specs
- Locate Studs Or Concrete Centers With As-Built Verification
- Hang The Wall Plate Or Ceiling Frame Level And Plumb
- Add Secondary Retention And Strain-Relieved Cable Loops
- Micro-Adjust Height, Tilt, Roll, And Y/Z Depth For Seamless Alignment
- Capture Acceptance Photos, Serial Numbers, And EDID/Control Checks
Substrate, Anchor Type, And Typical Capacity (Illustrative)
| Substrate | Anchor Type | Typical Capacity | Notes |
|---|---|---|---|
| Wood Studs | Lag Bolts Into Studs | High | Verify Stud Spacing And VESA Reach |
| Metal Studs | Toggle Bolts Or Backing Plate | Medium | Add Load-Spreading Plate When Possible |
| Concrete Or Block | Wedge Anchors | Very High | Observe Edge Distance And Embed Depth |
| Drywall Only | Not Recommended | N/A | Add Backing, Rail, Or Switch To Floor/Ceiling |
How to Maintain Digital Signage Mounts?
Maintain signage mounts by scheduling torque checks, inspecting fasteners and safety tethers, cleaning dust from tracks and pop-outs, and validating cable relief and control commands after any service event. Small, periodic actions keep seams tight and prevent nuisance calls.
Preventive Maintenance Actions For Digital Signage Mounts include:
- Re-Torque Critical Fasteners To Manufacturer Specifications
- Inspect Safety Lanyards, Retention Screws, And Locking Tabs
- Clean Pop-Out Rails And Micro-Adjust Mechanisms Of Dust And Debris
- Re-Seat Connectors And Verify Cable Strain Relief And Bend Radii
- Re-Level Arrays And Re-Align Bezels After Service Activity
- Update Maintenance Log With Date, Tech, And Checklist Results
How Do Mounting Safety, Compliance, and Accessibility Guide Mounting Choices?
Mounting safety, compliance, and accessibility guide choices by imposing load ratings, secondary retention, protrusion limits, headroom, and egress clearances that protect the public and reduce liability. According to the ADA and related guidance, wall-mounted objects between 27″ and 80″ above the floor cannot project more than 4″ into circulation paths, and protruding-object rules must be honored in corridors and lobbies.
Mounting Safety Quick-Ref → Rule | What It Means | Where It Applies | Pass Check
| Rule | What It Means | Where It Applies | Pass Check |
|---|---|---|---|
| ADA Protrusion | Max 4″ projection at 27–80″ AFF | Corridors, lobbies, queuing | Measure depth vs wall face |
| Headroom | 80″ minimum clearance | Circulation paths | Laser measure under screens |
| Secondary Retention | Redundant safety tethers | Suspended/ceiling mounts | Rated cable and hardware |
| UL 2442 Listing | Tested AV mount safety | Commercial interiors | Verify listing on datasheet |
| IP/IK Ratings | Weather and impact protection | Semi-outdoor/outdoor | Confirm tested ratings |
| Seismic/Wind | Bracing and anchorage design | Seismic zones/outdoor | PE stamp and inspection |
According to UL Standards & Engagement, UL 2442 covers wall and ceiling mounts used to support AV equipment, including mounting securement testing.
How Does Mounting Meet Seismic/Wind and Code Requirements?
Mounting meets seismic and wind requirements by designing bracing and anchorage per local code (often IBC referencing ASCE 7 Chapter 13), obtaining engineer stamps where required, and submitting permit packages that show loads, anchors, and bracing details. According to structural practice guides and health-care authority programs, nonstructural components require restraint design and may use preapproved assemblies (OPM) in California to speed approval.
Permit and code checklist for digital signage mounting includes:
- Identify Code Path And Seismic Design Category
- Provide PE-Stamped Calculations And Details
- Specify Anchors, Edge Distances, And Torque
- Add Sway Bracing And Movement Joints
- Submit Shop Drawings And Manufacturer Cut Sheets
- Schedule Special Inspections And Proof-Loads
- Archive As-Built Photos And Inspection Reports
How Does Mounting Ensure Accessibility and Sightline Mounting?
Mounting ensures accessibility and sightlines by placing displays within defined height bands for standing or seated viewers, controlling protrusions, maintaining clear wheelchair paths, and increasing edge contrast to reduce collision risk. According to ADA guidance, protruding-object and reach-range rules support safe circulation and operable parts placement.
Accessibility checklist for digital signage mounting includes:
- Set Centerline Heights For Use Case
- Limit Protrusions In Corridors And Queues
- Maintain Wheelchair Turning And Pass-By Widths
- Provide Captioning And Volume Controls Nearby
- Add Edge Contrast Or Rails Below 27″
- Keep Operable Parts Within Reach Range
- Validate Viewing Angles For Seated Users
How Do Mounting Substrates and Anchors Determine Mounting Reliability?
Mounting substrates and anchors determine reliability by controlling pull-out, shear, and edge distances; selecting the correct anchor for wood studs, metal studs, CMU, brick, or steel ensures safe long-term support and predictable maintenance intervals. University safety programs and structural references stress that toggle bolts in gypsum alone are unacceptable for load-bearing attachments.
Substrate → Anchor Selection → Substrate | Anchor Type | Typical Pull-Out | Notes
| Substrate | Anchor Type | Typical Pull-Out | Notes |
|---|---|---|---|
| Wood Stud | Lag Screw Into Stud | High (stud grade dependent) | Pre-drill, observe edge/spacing |
| Metal Stud | Specialty Toggle/Bolt To Backer | Moderate | Add Plywood Backer Or Unistrut |
| CMU (Hollow) | Sleeve/Toggle + Backer | Moderate | Use Webs; consider epoxy sleeves |
| CMU (Filled) | Wedge/Adhesive | High | Verify fill; respect edge distance |
| Brick | Adhesive/Screen Tube | Moderate | Avoid weak/old mortar joints |
| Structural Steel | Clamp/Through-Bolt | Very High | Confirm flange thickness/flex |
| Concrete | Wedge/Adhesive | Very High | Observe cure time, proof-load |

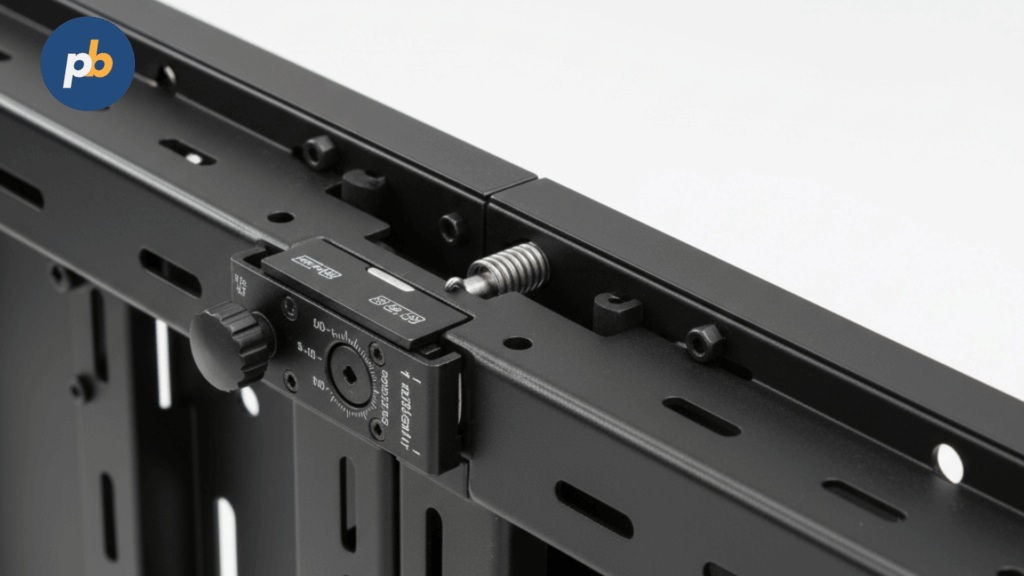

How Does Mounting Manage Tolerances and Torque Over Time?
Mounting manages tolerances and torque by using thread-locker where specified, logging initial torque values, scheduling re-torque inspections, and accounting for thermal/vibration cycles that loosen fasteners. Maintenance intervals for digital signage mounting include:
- Re-Torque Critical Fasteners At 90 Days
- Inspect Safety Tethers And Carabiners Quarterly
- Check Level, Plumb, And Seam Gaps Quarterly
- Inspect Cable Abrasion And Strain Relief Semiannually
- Clean Vents And Dust Filters Quarterly
- Review Anchor Corrosion And Cracks Annually
- Update Service Labels And QR Records Annually
How Does Mounting Integrate Power, Cabling, and Thermal Management During Mounting?
Mounting integrates power, cabling, and thermal management by placing in-wall boxes or surface raceways at mount centers, respecting bend radii and strain relief, reserving airflow behind high-nit displays, and using signal extension (HDBaseT/fiber) where runs exceed HDMI limits.
According to the HDBaseT Alliance, HDBaseT transports uncompressed video, control, and Ethernet up to 100 m on a single Cat cable, with 4K/60 capability on newer specs and distance dependent on cable grade.
Cable labeling and strain relief SOP for digital signage mounting includes:
- Print Heat-Shrink Or Wrap Labels At Both Ends
- Add Service Slack Loops And Velcro Ties
- Respect Bend Radius For HDMI/Fiber
- Provide Grommets And Edge Protection
- Secure Power Separate From Signal Where Possible
- Test EDID/HDCP Before Final Closure
- Capture Photos Of All Cable Paths
How Does Mounting Support Serviceability and Lifecycle Mounting?
Mounting supports serviceability and lifecycle by specifying pop-out or hinged access where content refreshes and player swaps are routine, adding QR-coded IDs to mounts, and keeping spare fasteners and tools with each site’s kit.
Service access checklist for digital signage mounting includes:
- Choose Pop-Out Or Hinged Service Geometry
- Assign QR Codes To Mount IDs And Locations
- Store Spare Fasteners And Security Bits On-Site
- Document EDID/HDCP And API Control Scripts
- Plan Player Swap Access And Power Isolation
- Maintain As-Built Photos In Service Portal
- Train Staff On Safe Release And Re-Latch
Which Mounting Solution Is Best for the Scenario Today?
The best mounting solution is the one that satisfies environment, size/weight, service access, orientation, audience distance, landlord/seismic constraints, and security within budget. The following matrix matches common scenarios to recommended features and watch-outs.
Best-for-X Mounting Matrix → Scenario | Recommended Mount Features | Why | Watch-Outs
| Scenario | Recommended Mount Features | Why | Watch-Outs |
|---|---|---|---|
| Indoor Retail Wall | Tilt, cable cover, anti-theft screws | Glare control, clean look | Protrusion and stud spacing |
| Window-Facing | Suspended bars, rear service gap | Daylight angles, access | Sun load, sway control |
| QSR Menu Board | Level rail, micro-adjust, continuous tilt | Straight lines across screens | Ceiling structure, conduit |
| Lobby Videowall | Pop-out X/Y/Z micro-adjust | Seamless alignment, fast service | Depth, egress, power zones |
| Auditorium LED | Rigid frame, datum, front service | Planarity and cabinet swaps | Structure and expansion |
| Outdoor Totem | IP/IK kiosk, slab anchors, surge | Weather and vandal resistance | Drainage and thermal load |
| Queue Ceiling | Dual safety tethers, drop rigidity | Clear sight over people | Seismic sway and deflection |
| Mobile/Event | Braked casters, low COG, reel | Safe transport and setup | Trip hazards, cable strain |
What Is the Best Signage Mount for Single Wall-Mounting in Indoor Retail?
Chief LTM1U Fusion Tilt is the best indoor retail wall mount because it supports large displays with micro-adjust, secure tilt locks, wide VESA coverage, and clean integration for cable covers.
Retail quick picks for digital signage wall mounting include:
- Select Tilt Geometry For Glare Control
- Add Security Screws And Anti-Lift Bars
- Route Power To In-Wall Box Behind Mount
- Use Cable Cover Channels For Aesthetics
- Verify ADA Protrusion With Screen Depth
What Is the Best Signage Mount for High-Bright Window-Display Mounting?
Peerless-AV MOD-FPSKIT100 Modular Ceiling Kit is the best window display mounting set because it combines structural versatility, height adjustability, and cable-in-pole routing to position high-bright screens precisely in window bays.
Window do’s & don’ts for digital signage mounting include:
- Do Provide Rear Service Clearance And Safety Tethers
- Do Angle Displays To Reduce Reflections
- Do Plan Sun-Load Gaps And Vent Paths
- Don’t Block Sprinklers Or Curtains
- Don’t Overtighten Cable Grips Without Ferrules
What Is the Best Signage Mount for Menu-Board Mounting Across Multiple Screens?
Peerless-AV DS-MBZ647L QSR Menu Board Mount is the best menu-board mounting system because it delivers tool-less height and depth adjustments, continuous or fixed tilt for uniform angles, and connected plates for perfectly straight lines.
Leveling steps for menu-board digital signage mounting include:
- Establish Laser Level Line And First Plate
- Connect Plates And Verify Rail Straightness
- Hang Screens And Equalize Gaps
- Set Uniform Tilt Across All Positions
- Lock Security Hardware And Cable Manage
What Is the Best Signage Mount for Video-Wall Mounting in Lobbies?
Chief ConnexSys LVS1U is the best mount for signage lobby video-wall because its pop-out micro-adjust rails, kickstand access, and “prevent accidental pop-out” safety design enable precise alignment and safer field service.
Lobby wall checklist for digital signage mounting includes:
- Verify Egress And Protrusion Clearances
- Pre-Run Slack Loops And Label Every Drop
- Shim Wall For Planarity Before Hanging
- Use X/Y/Z Micro-Adjust To Close Gaps
- Photograph Final Seams For Baseline
What Is the Best Signage Mount for LED Wall Mounting in Auditoriums?
Chief TiLED dvLED Mounting System is the best auditorium LED frame because its modular, UL-listed design supports precise X/Y/Z planarity with model-specific spacers, reducing install time and seam drift on large canvases. Peerless-AV SEAMLESS Connect is an excellent alternative when universal spacers and floor-to-wall structures are needed.
LED frame build steps for digital signage mounting include:
- Set Datum Lines And Check Wall Flatness
- Assemble Frame And Confirm Level/Plumb
- Install Cabinets Row-By-Row And Test Power
- Calibrate Brightness/Color And Uniformity
- Document Spare Modules And Pixel Policies
What Is the Best Digital Signage Mount for Outdoor Kiosk Mounting?
Peerless-AV Smart City Kiosk (KOP55XHB) is the best signage mount for outdoor kiosk because it integrates an IP66, high-bright display, IK10 protective glass, rear service doors, and spacious component storage in an all-weather chassis.
Outdoor checklist for kiosk/totem digital signage mounting includes:
- Confirm Wind Load And Anchor Pattern
- Provide Drainage, Gasketing, And Filters
- Add Surge Protection And Proper Ground
- Use Anti-Vandal Fasteners And Locks
- Verify Service Door Clearance And PPE
What Is the Best Signage Mount for Ceiling-Mounted Mounting Over Queues?
Peerless-AV Modular Ceiling Solutions are the best signage mounts for Over Queues because they offer rigid drop poles, multi-display connectors, concealed cabling, and field-configurable bars for perfect alignment over traffic lanes.
What Is the Best Signage Mount for Mobile Cart Mounting and Event Mounting?
Chief MFCUS Mobile Cart is the best mobile/event mount because it balances stability, cable management, and serviceability with braked casters and a proven commercial load rating; Peerless-AV SR560 and specialized interface carts are strong alternatives for brand-specific displays.
Event kit checklist for digital signage mounting includes:
- Choose Cart With Braked Casters And Low COG
- Add Cable Reels And Floor Cable Guards
- Pack Spare Fasteners And Security Bits
- Include UPS Or Battery Enclosure If Required
- Define Setup Height And Viewing Distance
What Is the Best Digital Signage Mount for Each Environment?
For typical environments, Chief Fusion XSM1U is the best indoor fixed wall mount for single displays due to micro-adjust alignment, 250-lb capacity, and low 2.25″ profile; Peerless-AV DS-VW775-QR is the best serviceable video-wall mount thanks to pop-out access and fine X/Y/Z micro-adjust; and Chief LCM3X1U is the best ceiling menu-board system for restaurants and retail because it creates rigid multi-panel rows from a single drop with precise leveling.
Environment-To-Mount Picks And Reasons (At-A-Glance)
| Environment | Top Pick | Why It Fits |
|---|---|---|
| Indoor Single Display (Wall) | Chief Fusion XSM1U | Micro-Adjust, 250-lb Capacity, Low Profile For Corridors. |
| Menu Row (Ceiling) | Chief LCM3X1U | Single-Drop Menu Rows, Roll/Level Adjustments, Clean Cable Path. |
| Video Wall (Serviceable) | Peerless-AV DS-VW775-QR | Pop-Out Service, Fine X/Y/Z Micro-Adjust, Portrait Or Landscape. |
| Open-Ceiling Retail/Gym (Ceiling Tilt) | Peerless-AV DST995 | Tilt/Swivel With Internal Player Storage For Clean Installs. |
| Modular Floor Stand/Trolley (Hospitality) | Vogel’s Connect-it | TÜV-Certified Modular System, 86″/High Load Options, Cable Management. |
| Large Video Wall (Alt.) | B-Tech BT8341 | Pop-In/Pop-Out Arms, System X Micro-Adjust, Service Access. |
What Is the Best Mount for Hotel Digital Signage?
Vogel’s Connect-it modular floor-stand/trolley system is the best signage mount for hotel digital signage because ballrooms, pre-function areas, and meeting spaces demand frequent reconfiguration, elegant cable management, and TÜV-certified load handling up to large displays.
Why This Choice Works In Hotels include:
- Support Flexible Floor Stands, Trolleys, And Ceiling/Wall Variants From One System
- Hide Cables Inside Poles For Clean Hospitality Aesthetics
- Handle Large Displays And Interactive Panels With High Load Ratings
- Reconfigure Quickly For Events Without Wall Modifications
- Use Proven European Certifications For Safety Assurance
What Is the Best Signage Mount for Restaurant Digital Signage?
Chief LCM3X1U is the best signage mount for restaurant digital signage, because it builds rigid 3×1 rows from a single drop, offers roll/level micro-adjust to keep menu seams tidy, and simplifies cleaning and service in busy counter zones; for wall menus, Chief LWM5X1U offers a purpose-built 5×1 rail.
Menu-Board Mounting Advantages In Restaurants include:
- Keep Menu Rows Level Over Long Counters With Micro-Adjust Roll And Depth
- Avoid Wall Constraints With Single-Drop Ceiling Structures
- Maintain Clear Sightlines Above POS With Predictable Centerlines
- Protect Cables And Players Using Back Covers Or Integrated Storage
- Expand Or Re-Spacing Panels As Menus Grow Over Time
Alternatives Worth Considering For Restaurants include:
- Peerless-AV DST995 For Open-Ceiling Tilt with Internal Player Storage (Clean Look Above Lines).
What Is the Best Signage Mount for Gym Digital Signage?
Peerless-AV DST995 is the best mount for gym digital signage because open-ceiling spaces need a robust tilt/swivel ceiling solution with integrated media-player storage that resists vibration and keeps wiring sealed away from humidity and chalk dust.
Gym-Specific Mounting Considerations include:
- Prefer Ceiling Mounts To Avoid Wall Impact Zones Near Rigs And Racks
- Use Tilt/Swivel To Aim Over Cardio Lines And Class Floors
- Hide Players In Mount Enclosures To Reduce Tampering And Dust Ingress
- Add Secondary Safety Retention For Vibration-Prone Areas
- Verify Clearances For Medicine-Ball Or Bar Pathways
What Is the Best Signage Mount for Café Digital Signage?
Chief Fusion XSM1U is the best signage mounts for Cafe digital signage because its Centerless lateral shift and ControlZone leveling make alignment straightforward on imperfect walls while its 2.25″ profile stays within corridor protrusion limits.
Why This Choice Works In Cafés include:
- Achieve Rapid, Precise Alignment Above Narrow Counters
- Keep Cables Managed Behind A Low-Profile Chassis
- Support Portrait Or Landscape With Solid Load Margins
- Minimize Service Time With Click-In/Out Access Features
- Standardize One SKU Across Multiple Storefronts
How to Read A Mount Datasheet Before Buying?
Read a mount datasheet by checking VESA range, weight capacity with margin, micro-adjust axes, ADA depth, substrate/anchor guidance, service access (pop-out or drop-in), and accessories for player covers or security. The correct mount spec prevents change orders after walls are closed.
Mount Datasheet Red Flags To Challenge include:
- Missing Micro-Adjust Specifications For Multi-Panel Rows
- Vague “Universal” Claims Without VESA Ranges And Weight Tables
- No Mention Of ADA Protrusion Depth For Corridor Placements
- Absent Anchor Guidance For Metal Stud Or Hollow Block Substrates
- No Accessory Path For Player Covers, Security Screws, Or Safety Cables
How to Create A Fast, Field-Ready Mounting Checklist?
Create a checklist that compresses survey data, anchor decisions, and acceptance tests into a single page attached to the ticket. Teams install faster and produce consistent, auditable results.
Field-Ready Mounting Checklist For Digital Signage include:
- Verify Display Model, VESA Pattern, Weight, And Orientation
- Confirm Substrate, Anchor Type, And Required Backing Or Plates
- Plan Cable Paths, Service Loops, And Conduit Or Raceway Terminations
- Reserve ADA Clearances And Max 4″ Protrusion In Circulation Paths
- Run Acceptance: Level/Plumb, Micro-Adjust, EDID/HDCP, Control Scripts, Photos
Where Do Mobile Carts Fit In A Mount Strategy?
Mobile carts fit in meeting areas, pop-up retail, and hospitality where screens move between rooms; Peerless-AV SR560M and SR560-HUB2 families offer UL-listed mobility and height adjustment for safe, repeatable setups.
Mobile Cart Use Cases And Cautions include:
- Support Training, Events, And Overflow Lines Without New Wall Work
- Control Caster Locks And Route Power Safely Across Walkways
- Add Shelves Or Compute Access As Required By The Application
- Set Repeatable Viewing Heights For Consistent Sightlines
- Store In Secure, Low-Traffic Areas Between Uses
How to Decide Between Video-Wall Mount Families?
Decide by prioritizing service access, micro-adjust resolution, and installation speed: Peerless-AV DS-VW775-QR focuses on quick-release service and 1.5″ X/Y/Z tuning, while B-Tech BT8341 provides pop-in/pop-out arms with System X modularity—both proven in large arrays.
Video-Wall Planning Essentials include:
- Keep Critical Text At Least 1.5× Bezel Width From Seams
- Use Pop-Out Service To Access Middle Panels Without Wall Cuts
- Align Color Temperature And Luminance Across The Wall After Mounting
- Script Power/Input Control To Eliminate CEC Conflicts
- Document Panel Order, VESA Positions, And Leveling Shim Locations
How Do Mounting Vendors, Warranties, and SLAs Affect Mounting Risk?
Mounting vendors, warranties, and SLAs affect risk by determining replacement speed, availability of spare fasteners and adapters, clarity of load ratings, and documented install guidance. Vendor scoring factors for digital signage mounting include:
- Verify UL Listing And Published Load Ratings
- Confirm Warranty Length And Coverage Scope
- Assess Documentation And Revit/Config Tools
- Review dvLED Compatibility Lists And Spacers
- Check Stock Levels And Lead Times
- Evaluate Security Hardware And Anti-Tamper Options
- Rate Technical Support And Field Training
How Does Mounting Procurement and RFP Capture the Right Mounting Requirements?
Mounting procurement and RFP capture requirements by including scope drawings, substrate test locations, torque specs, acceptance tests, and a spare parts list, ensuring vendors deliver what engineering and safety demand.
RFP/SoW clauses for digital signage mounting include:
- Provide PE-Stamped Anchoring And Bracing Details
- Specify Substrate Tests And Pull-Out Proofs
- Include Torque Values And Re-Torque Schedule
- List Spare Fasteners, Bits, And Security Keys
- Require As-Built Photos And Commissioning Records
- Mandate ADA/Code Compliance Verification
- Define Response Times For Service Requests
How Do Mounting Installation and Commissioning Verify Mounting Quality on Day One?
Mounting installation and commissioning verify quality by measuring and laser-leveling, logging torque values, verifying safety cables, validating EDID/HDCP after mounting, and capturing photographic sign-off for the as-built record.
Mounting Acceptance Tests → Test | Tool | Pass Criteria | Sign-Off Role
| Test | Tool | Pass Criteria | Sign-Off Role |
|---|---|---|---|
| Level/Plumb | Laser level | ≤1 mm per screen edge variance | Installer + PM |
| Fastener Torque | Torque wrench | Within spec ±10% | Installer + Safety |
| Safety Tethers | Visual/measure | Dual tethers secured | Installer |
| Cable Strain | Visual tug test | No movement, proper slack | Installer |
| EDID/HDCP | Player diagnostics | Handshake stable post-mount | IT/AV |
| Thermal/Airflow | IR/visual | Clear vents, temp within spec | Installer |
| Photo Sign-Off | Camera/app | Full front/side/back record | PM/Owner |
Tools & PPE for digital signage mounting include:
- Laser Level, Torque Wrench, And Stud/CMU Finder
- PPE Helmet, Glasses, Gloves, And Fall Protection
- Rotary Hammer, Vacuum, And Fire-Stop Kit
- Security Bit Set And Spare Fasteners Kit
- Lift Certification And Load-Rated Slings
- Label Printer And QR Sticker Set
- IR Thermometer And Multimeter
How Does Mounting Maintenance Extend Life and Reduce Callouts?
Mounting maintenance extends life by scheduling inspections and re-torque, checking corrosion and cable abrasion, cleaning vents, and aligning firmware-controlled display power schedules to reduce unnecessary heat.
Quarterly and annual tasks for digital signage mounting include:
- Inspect Fasteners, Tethers, And Adjustments Quarterly
- Re-Torque Critical Anchors At 90 Days And Annually
- Clean Vents, Grilles, And Dust-Prone Surfaces Quarterly
- Check Cable Jackets And Replace Worn Ties Quarterly
- Verify Level/Plumb And Seam Gaps Quarterly
- Inspect Corrosion At Anchors And Brackets Annually
- Update Service Records And QR Links After Each Visit
What Mounting FAQs Do Teams Ask Before and After Installation?
The most common mounting FAQs have concise answers that speed decisions and keep projects moving:
What Mounting Handles A 55–65″ Mixed Fleet?
A commercial tilt wall mount with wide VESA coverage and 125 lb capacity, such as Chief LTM1U or Peerless ST650, handles most 55–65″ indoor displays safely with glare control and level adjustment.
What Mounting Protrusion Is Allowed In Corridors?
ADA limits wall objects between 27″ and 80″ to a 4″ maximum projection into circulation paths, so use low-profile frames or recesses.
Can Mounting Support Portrait Rotation?
Yes, portrait-rated mounts and many kiosks support portrait orientation; verify VESA pattern, center-of-gravity, and vendor orientation limits.
Which Anchor Works For Hollow Block?
Use sleeve or toggle systems with backers or adhesive anchors designed for hollow CMU, and proof-load per engineer guidance.
How Often Should Mounting Be Re-Torqued?
Re-torque critical fasteners after 90 days of settling and annually thereafter, or after seismic events and major temperature swings.
What Mounting Works On Curved Walls?
Modular rail systems or custom frames with micro-adjust plates adapt to gentle curves; confirm planarity limits with LED or LCD vendors.
Does Mounting Need A UL Listing?
Yes, commercial wall/ceiling mounts should be UL 2442 listed to verify securement and load tests for AV use.
How Far Can HDMI Run Without Extension?
Passive HDMI is generally limited to short runs; use HDBaseT for up to 100 m or fiber extenders for longer distances.
Takeaway
Digital signage mounting secures displays, maintains alignment, and enables fast service access — all while meeting safety, code, and accessibility standards. The right mounting choice keeps screens stable, cables managed, and viewing angles optimized for every environment.
Manage those screens effortlessly with PosterBooking, a free cloud-based platform that lets you update content in real time and scale your network without extra hassle.
