How to Display Campus Maps on Screens

To display campus maps on screens, you put the map on one of 3 screen types, an interactive touchscreen kiosk running wayfinding software, a static screen showing a high-resolution map image, or a non-interactive digital signage screen managed through a cloud-based CMS, then connect a media player, mount the display at each campus location, and keep the map current from one dashboard.

A media player is a small device, such as an Amazon Fire TV Stick or Raspberry Pi, that plugs into a screen and renders the map locally. A CMS, the content management system, is the cloud dashboard where you upload, schedule, and update campus map content remotely. The right screen type depends on the location: A kiosk at the main entrance, a static or signage screen in a lobby or corridor, and a QR code linking visitors to an interactive map on their own phone.

The reason this matters is the arrival experience. Picture a new student at the main gate on day one with no idea where the lecture theatre is, a visiting parent circling the car park looking for admissions, or a conference attendee asking the third person in a row where building C is.

This guide is written for 3 roles: Facilities managers, IT teams, and operations leads at universities, colleges, hospitals, and corporate campuses. Specifically, it covers display types, hardware, interactive mapping software, static display methods, and the best practices that separate a useful map from a confusing one. Ultimately, by the end, you’ll know which screen belongs at each campus location and how to keep every map current.

What Is a Digital Campus Map Display?

A digital campus map display is a screen, interactive or non-interactive, showing a map of a physical campus to help visitors, students, and staff navigate buildings, rooms, and outdoor spaces. There are 3 display types, and each suits a different location and budget.

Static Campus Map Displays

A static display shows a high-resolution image of the campus map, with building outlines, room numbers, colour-coded zones, and a “You Are Here” marker. You update it by uploading a new image to the CMS, the content management system, whenever the campus changes. Accordingly, a static display is the lowest-cost option to implement, because it needs no specialist software and no touchscreen hardware.

Interactive Campus Map Displays

An interactive display is a touchscreen kiosk running dedicated wayfinding software. A visitor searches for a building or room by name, and the system generates a route from the kiosk’s location. Notably, interactive systems support indoor navigation, accessible route filtering, and real-time updates when rooms change use. However, they require both touchscreen hardware and specialist mapping software, which is why they cost more than any other option on this list.

Digital Signage Campus Map Displays

A digital signage campus map display is a non-interactive screen in a lobby, building entrance, or corridor that shows rotating campus information: Map images, building directories, event locations, and QR codes linking to interactive maps on mobile. You manage it through a digital signage CMS. Consequently, it sits between the static and interactive options, because it carries more than a single fixed image without the cost of a touchscreen. With the 3 display types defined, the next question is why a campus invests in any of them.

Hardware Required

Campus map display hardware consists of a commercial-grade screen, a media player or built-in compute module, mounting hardware suited to the location, and a stable network connection.

Commercial Displays

Commercial displays are rated for continuous operation of 16 to 24 hours per day, which is the specification any campus screen running through opening hours requires. Key brands for education and campus environments include the Samsung QMR series, the LG UH5F series, and NEC MultiSync. Accordingly, screen sizes range from 32 inches for building entrance panels to 75 inches and above for main lobby displays. You should specify commercial-grade hardware for any screen running unattended, because a consumer TV warranty routinely excludes commercial use entirely.

Media Players

For non-interactive displays, an Amazon Fire TV Stick, Android TV device, or Raspberry Pi is sufficient. For interactive kiosks, a more powerful compute module is required, and most interactive wayfinding platforms specify their own compatible hardware. Consequently, you should confirm the platform’s hardware requirements before buying kiosk compute, because an underpowered module will stutter on routing.

Touchscreen Displays

Interactive wayfinding requires a commercial touchscreen panel, for example from Elo Touch, Samsung, or LG. Sizes range from 43 inches wall-mounted to 55 inches and 65 inches freestanding kiosk. Accordingly, you should size the touchscreen to its placement, because a wall-mounted panel and a freestanding kiosk serve different reach and viewing heights.

Outdoor Hardware

Any outdoor installation needs an IP65-rated weatherproof enclosure, a high-brightness panel of at least 2,500 nits, and vandal-resistant glass. Otherwise, a standard indoor panel placed outdoors fails quickly against weather, glare, and physical wear.

Network Requirements

A stable Wi-Fi or wired ethernet connection is required for CMS content updates and for interactive maps pulling real-time data. Notably, wired ethernet is recommended for fixed kiosk installations, because a permanent kiosk should not depend on Wi-Fi signal strength that varies through the day. However, hardware alone renders nothing without the software that drives the map, and interactive campus mapping is its own category.

Interactive Campus Mapping Software

Dedicated campus mapping platforms handle floor plan upload, room data management, search and routing, and deployment to touchscreen kiosks, separate from general digital signage CMS platforms. There are 5 common options.

MazeMap

A widely deployed indoor mapping platform used by universities across Europe and North America. Specifically, it supports multi-building campuses, room search, accessible route filtering, and integration with timetabling systems. Its embed URLs can be displayed on non-interactive screens or touchscreen kiosks, which gives you one map source for both.

Mappedin

An indoor mapping platform focused on large complex venues, for example universities, hospitals, and corporate campuses. Notably, it provides a developer API, an application programming interface that lets one software system connect to another, alongside a standard CMS interface. Accordingly, it suits teams that want custom integrations rather than an off-the-shelf map alone.

Steerpath

An indoor navigation platform supporting Bluetooth beacon-based positioning for turn-by-turn indoor directions. Therefore, it suits large campuses where GPS signal is unreliable inside buildings, because beacons provide position where satellites cannot reach.

CampusMaps

A purpose-built campus mapping platform for higher education. Specifically, it integrates with student information systems and room booking platforms, which keeps room-level data aligned with the systems a university already runs.

Google Maps Custom Maps

For campuses that do not require indoor navigation, a custom Google My Maps layer can mark key buildings and entrances and be embedded on a screen via URL. Consequently, it is free to implement, although it is limited to outdoor locations and cannot route a visitor to a room inside a building. Once the software is chosen, setup differs sharply depending on whether the screen is interactive.

How to Set Up a Campus Map Display

Setup varies by display type: Interactive kiosks require a mapping platform, floor plan upload, and touchscreen hardware, whereas non-interactive screens require a CMS, a map image or URL, and a media player. The process runs in 5 steps.

Step 1: Choose Display Type

You determine whether the location needs interactive wayfinding, a touchscreen kiosk with search and routing, or non-interactive map display, a lobby screen showing a static map or rotating campus information. Accordingly, budget and footfall volume at each location drive this decision, because a high-traffic main entrance justifies a kiosk that a quiet corridor does not.

Step 2: Create the Campus Map

For interactive deployments, you upload floor plans to the chosen mapping platform, whether MazeMap, Mappedin, or Steerpath, add building and room data, and configure search and routing. Alternatively, for static deployments, you export a high-resolution campus map image, a minimum of 3840×2160 pixels for 4K screens, with a “You Are Here” marker specific to each location.

Step 3: Configure Hardware

You mount the display at the chosen location, connect the media player or compute module, and connect to the network via ethernet or Wi-Fi. Then the screen is ready to receive content.

Step 4: Deploy and Publish

For interactive kiosks, you deploy the mapping platform app to the kiosk hardware and configure it to launch on startup. For non-interactive screens, you upload the map image or URL to the CMS, add it to a playlist, and push it to the screen. Consequently, the same campus can run both models side by side.

Step 5: Keep Maps Updated

You update floor plans and room data whenever campus buildings or room assignments change. Specifically, static map images should be re-exported and re-uploaded to the CMS, while interactive platforms update through the mapping software itself. However, who does that updating matters as much as how, and this is exactly where the choice of platform decides your ongoing workload.

Practitioner experience from campus IT makes the point directly. In a 2021 discussion within sys community, a one-person IT director explained that a web-based CMS was the priority precisely so content creation could be handed to admin assistants rather than routed through IT. Notably, a separate commenter in the same thread warned that single-computer signage software, where the design app runs on one machine, cannot easily share the designer role, because installing it on a second computer overwrites the first user’s work entirely. The synthesis across those accounts is that a cloud CMS with multiple user logins is what lets non-technical staff keep campus maps current. Therefore, you should treat multi-user web access as a core requirement, otherwise every map update becomes an IT ticket.

Best Practices for Campus Map Displays

The most effective campus map displays are simple, high-contrast, include a “You Are Here” marker specific to each screen location, and are optimised for the viewing distance at that screen.

Keep Maps Simple

You should show only what a first-time visitor needs: Building names, main entrances, key facilities such as the library, student services, cafeteria, and parking, and emergency exits. Otherwise, a map showing every room on every floor is unreadable on a screen viewed from 10 feet, because detail that works on paper collapses at distance.

Community reaction to an over-designed campus refresh proves the point. In a 2026 discussion within the r/jmu community about a proposed signage redesign, students and alumni repeatedly called the mock-ups too busy to read, and an architectural design alum in the thread drew the exact distinction that matters: A rich background works for an advertisement but not for a sign. Similarly, a driver in the same thread asked for bigger building numbers and street names because campus GPS was unreliable, which is a plea for legibility over decoration. The pattern across those reactions is that the moment a campus map prioritises style over clarity, the people using it revolt. Accordingly, you should keep the background plain and let the wayfinding information carry the design.

“You Are Here” Marker

Each screen must show a location-specific marker. That is, a campus map without a “You Are Here” reference forces the viewer to orient themselves independently, which adds unnecessary cognitive load at the exact moment of arrival when they are already unsure of their surroundings. In fact, students in the 2016 r/uwaterloo thread described the disorientation of walking through connected buildings without knowing whether they were standing in one building or the next, which is precisely the problem a location-anchored marker removes.

Colour-Coding

You should assign a distinct colour to each building category, for example academic, administrative, student services, and parking, so viewers parse the map visually without reading every label. Notably, this was a direct student request in the 2016 r/uwaterloo discussion, where a commenter argued the floor maps would work far better if they were colour-coded by room type, for example classrooms versus offices. Accordingly, colour does the first layer of navigation work before a single word is read.

QR Code Integration

You should add a QR code to every non-interactive campus map display, linking to a mobile-friendly interactive map. As a result, visitors who need detailed indoor navigation continue on their own phone rather than requiring a touchscreen kiosk at every location, which is the most economical way to extend wayfinding across a large campus.

Accessibility

You should display accessible routes, step-free entrances, and lift locations on every campus map. For interactive kiosks, you should also confirm that the touchscreen height and interface meet accessibility standards, because a kiosk mounted too high excludes the visitors who most need step-free routing. Ultimately, interactive kiosks handle the complex navigation need at primary entry points, whereas non-interactive screens in corridors, lobbies, and event spaces handle the broader campus communication layer, and that layer is managed through a digital signage CMS.

---

For universities and organisations that need to manage campus map content, building directories, and rotating announcements across non-interactive screens, PosterBooking is a cloud-based digital signage CMS that handles scheduling, remote updates, and multi-screen management from one dashboard.

Reliability at multi-building scale is exactly what campus IT teams report once a cloud platform is in place. In the 2021 r/k12sysadmin discussion, one administrator running screens across four schools said that after the initial setup they had not touched the displays in years beyond users uploading their own content. The pattern behind that report is that screen count grows painlessly once remote management and per-location user access are in place, whereas the same thread’s original poster found per-screen and per-zone pricing to be the main thing holding a campus-wide rollout back.

Accordingly, a campus planning to expand map coverage across many buildings should weigh both the per-screen cost and the multi-user access model before committing, because those two factors decide whether the network scales or stalls.

How to Display Campus Maps and Information with PosterBooking

To display campus maps with PosterBooking, you create an account, pair your screens through the PosterBooking app, upload map content into playlists, and schedule those playlists to your screens from any browser. PosterBooking is a cloud-based digital signage CMS compatible with Android TV, Amazon Fire TV Stick, and Raspberry Pi, and it manages static campus map images, embedded map URLs, building directories, and rotating campus information across multiple non-interactive screens from one browser-based dashboard.

Step 1: Create an Account

Sign up at PosterBooking.com. As of July 2026, the free plan includes 10 screens at no charge for the first 3 months, with no contracts. Subsequently, you upgrade to a paid plan if you want to keep your screens running beyond the 3-month period.

Step 2: Connect Your Screens

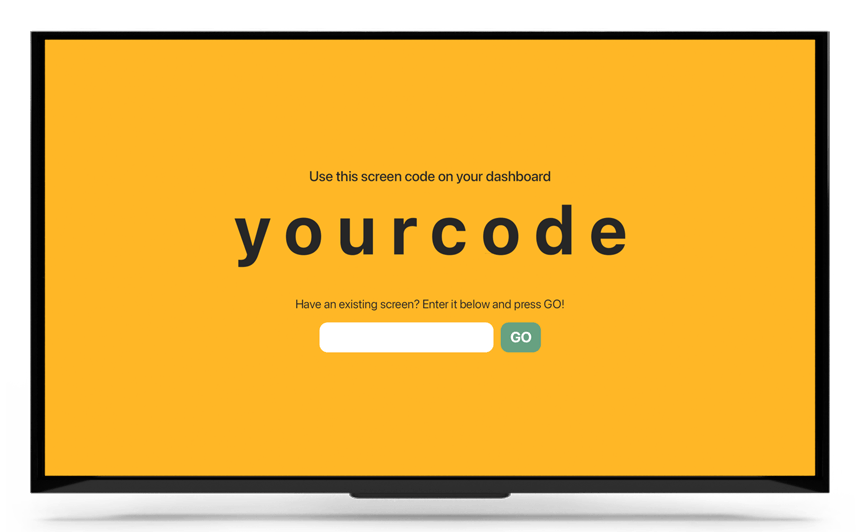

Install the PosterBooking app on an Amazon Fire TV Stick or Android TV device. Then a pairing code appears on the screen, and entering that code in the PosterBooking dashboard connects the display. Your first screen can be live in under 20 minutes.

Step 3: Upload Campus Map Content

Upload high-resolution campus map images, building directory graphics, or event location slides through the drag-and-drop builder. Alternatively, add a web URL item pointing to a hosted interactive map embed, whether MazeMap, Google Maps, or a custom URL, if the screen has a browser-capable media player. Then build playlists that rotate between the map, today’s events, and campus announcements. 4K content is supported on the free plan.

Step 4: Schedule and Push to Screens

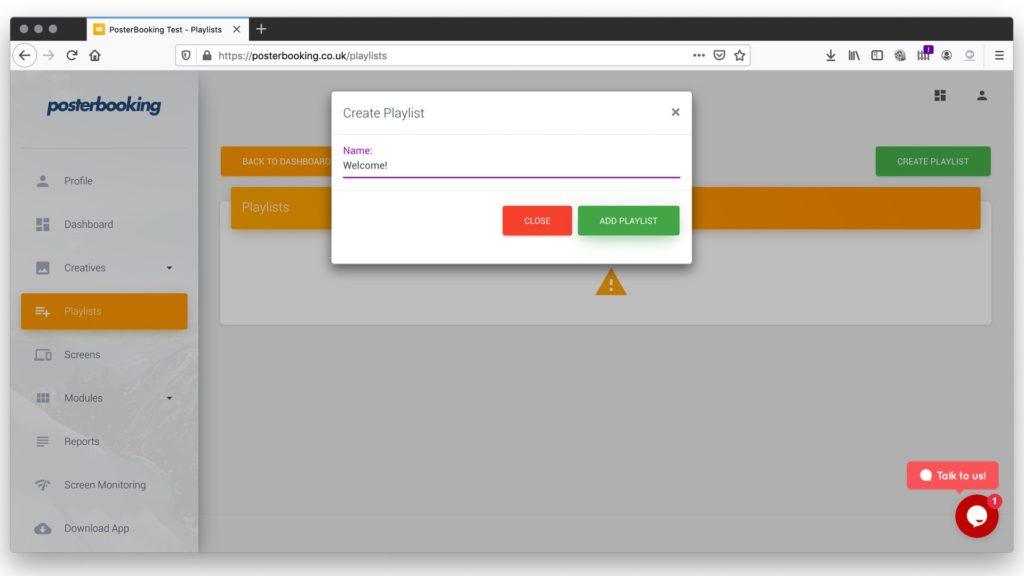

Assign playlists to screens or screen groups, for example all building entrance screens, all lobby screens, or all outdoor displays. Next, set schedules so the campus map shows during arrival hours and rotates to event information during the day. Finally, push updates from any browser without visiting the screen.

Frequently Asked Questions

How much does a digital campus map display cost?

A basic non-interactive campus map display costs the price of a commercial screen plus a media player and a CMS subscription, while an interactive touchscreen kiosk costs significantly more because of the touchscreen panel and wayfinding software licence. For the non-interactive route, a commercial screen, an Amazon Fire TV Stick, and a cloud CMS is the entry point, and a CMS such as PosterBooking is free for up to 10 screens for the first 3 months.

Do I need interactive touchscreens, or are static maps enough?

Static or non-interactive maps are enough for most campus locations, and interactive touchscreens are worth the extra cost only at primary entrances where visitors need turn-by-turn routing to a searched destination. That is, a lobby or corridor screen showing a clear map with a “You Are Here” marker answers the majority of navigation questions on its own.

What is the best screen size for a campus map display?

The best screen size depends on the viewing distance at each location, ranging from 32 to 43 inches at building entrances to 75 inches and above for main lobby and entrance displays.

Takeaways

Displaying campus maps on screens comes down to matching the right screen type to each location, specifying hardware that survives continuous operation, and choosing a platform that lets non-technical staff keep every map current. Start with the highest-traffic entrance, prove the format with a single screen, and expand across buildings once the workflow is settled. As of July 2026, you can trial a non-interactive campus map network on up to 10 screens at no charge for the first 3 months with PosterBooking, which is enough to validate placement, content, and update workflow before any budget commitment.
