Digital Signage Displays: Types, Specs & How to Choose

The most effective Signage Display is the one matched to venue light, viewing distance, and duty cycle, because that combination protects readability, safety, and total cost while keeping operations simple to run and scale.

In practice, the field narrows to LCD for most interiors, high-bright or outdoor LCD for windows and weather, direct-view LED for seamless large canvases, OLED for premium interiors with controlled light, and ePaper for ultra-low-power endpoints; the “right” choice then follows from sustained brightness, optics, mounting, power, and management needs.

---

What Is a Signage Display and How Is It Different From a TV or Monitor?

A Signage Display is a commercial-grade screen engineered for 16/7 or 24/7 operation with higher sustained brightness, thermal design for continuous use, remote control interfaces, and business warranties, while a TV or office monitor targets short, intermittent sessions under gentler conditions.

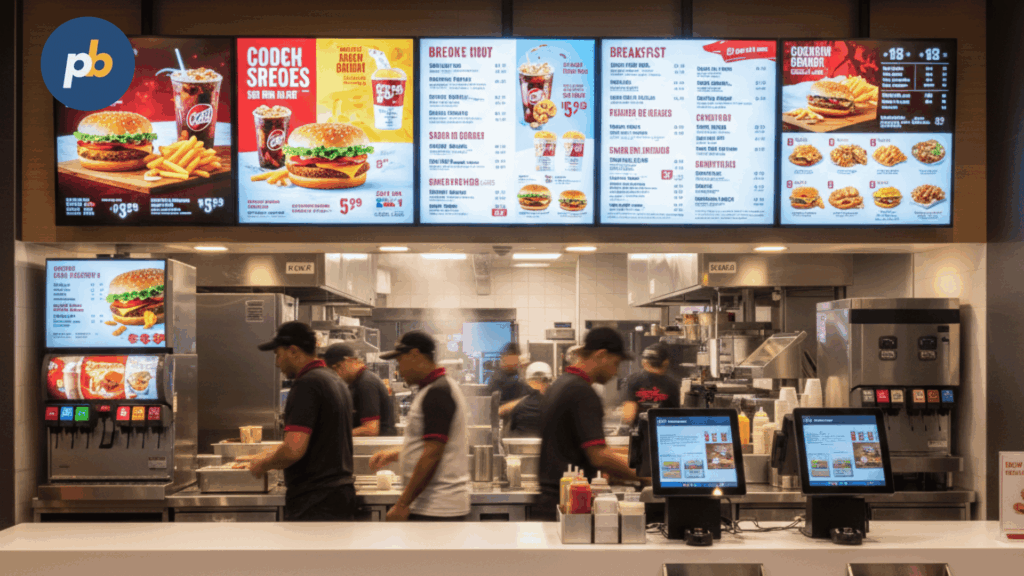

In real deployments, Signage Displays appear in retail signage and QSR, transit hubs, corporate campuses, healthcare signage, museum signage, education buildings, and fully outdoor environments where uptime, service access, and safety approvals matter.

TV vs Monitor vs Signage Display Key Differences include:

• Duty Cycle Ratings And Thermal Design
• Sustained Brightness And Ambient Contrast
• Remote Control Interfaces (RS-232/LAN/CEC)
• Commercial Warranty And Pixel Policy Terms
• Orientation Certification (Portrait/Landscape)
• Environmental Ratings And Glass Options
• Service Access And Fleet Manageability

---

Why Does a Signage Display Matter for Readability, Safety, and ROI?

A Signage Display matters because it sets the floor for legibility at distance, the ceiling for safe heat/brightness in public spaces, and the baseline for energy and maintenance that drive ROI. Correct luminance, optics, and size minimize misreads and rework, while proper mounting, power, and monitoring reduce truck rolls and downtime.

Top Outcomes a Signage Display Influences include:

• Readability At Real Viewing Distances
• Dwell-Time Conversion And Message Recall
• Safety Compliance And Physical Clearances
• Uptime Stability And Service Intervals
• Energy Consumption And Heat Load
• Multi-Screen Visual Uniformity
• Total Cost Of Ownership Over 3–5 Years

---

Which Signage Display Technologies Should Be Chosen and When?

Signage Display technologies should be chosen by environment and maintenance profile: LCD covers most indoor needs, high-bright/outdoor LCD handles windows and weather, OLED suits premium interiors, direct-view LED enables seamless walls and daylight fights, ePaper focuses on static low-power endpoints, and projection/UST solves large, short-throw canvases in controlled light.

Table 1 of 5 — Signage Display Technology Comparison

Technology	Pros	Cons	Typical Brightness	Best Environments	Maintenance Notes
LCD (IPS/VA)	Sharp Text, Broad Sizes, Predictable Color	Limited Very-Large Canvases	300–1,000 nits	Indoor Menus, Dashboards, Corridors	Occasional Calibration And Dusting
High-Bright/Outdoor LCD	Daylight Readability, AR Glass Options	Higher Power/Thermal Complexity	1,500–5,000 nits	Window-Facing, Semi/Outdoor	Filter Cleaning, Fan/Heat-Exchanger Checks
OLED (Incl. Transparent)	Perfect Blacks, Thin Profiles, Curved Options	Retention Risk, Reflective Surfaces	300–800 nits	Premium Interiors With Controlled Light	Content Care And Periodic Compensation
Direct-View LED (SMD/COB/microLED)	Seamless Size, Very High Brightness	Cost At Fine Pitch, Specialized Service	600–10,000 nits	Atria, Facades, DOOH, Large Walls	Tile/Module Spares And Calibration
ePaper/eInk	Ultra-Low Power, Sun-Readable	Slow Refresh, Limited Motion/Color	Reflective (Ambient-Lit)	Meeting Rooms, Shelf Labels, Static Menus	Battery/PoE Maintenance, Update Windows
Projection/UST	Massive Canvas, Flexible Aspect Ratios	Ambient-Light Sensitivity, Lamp/Laser Aging	Lumens-Driven	Auditoria, Temporary Exhibits	Lens/Filter Care And Light Path Cleaning

---

How Should a Signage Display Be Chosen for Indoor, Window, or Outdoor Use?

A Signage Display should be chosen by placing environment first: standard indoor models for 350–700-nit spaces, high-bright with anti-reflective glass for windows and bright lobbies, and fully outdoor enclosures with IP/IK ratings, laminated glass, and thermal management for weather-exposed sites. Vandal resistance and service access then govern enclosure and mount selection.

Decision Rules by Environment for a Signage Display include:

• Indoor Standard → 350–700 Nits With Low-Glare Optics
• Window-Facing → 1,500–3,500 Nits With AR Laminated Glass
• Outdoor Direct Sun → 3,500–5,000+ Nits With IP/IK Ratings
• Semi-Outdoor Canopies → High-TNI Panels And Active Cooling

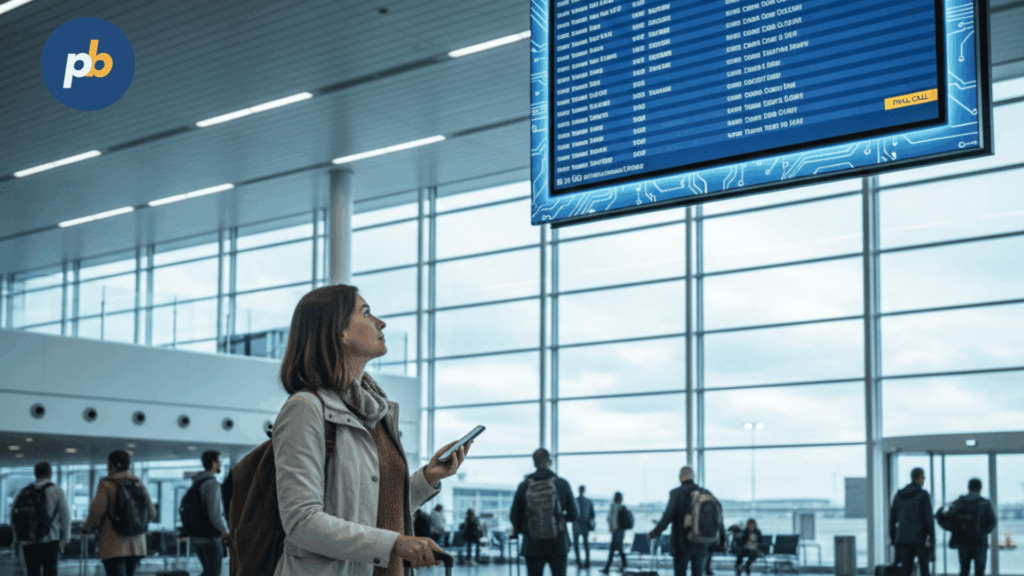

• Transit/Street Furniture → Laminated Glass And Anti-Vandal Hardware
• Premium Lobby → Low-Reflectance Finishes And Uniformity Controls

How to Install a Digital Signage Display Safely and Cleanly?

Installing a digital signage display is done safely and cleanly by validating site readiness, confirming power and network, verifying the wall or other substrate, matching the VESA pattern, mounting with rated signage hardware, managing cables for strain relief and service, commissioning the display and player, and documenting every setting for future support.

Tools And Materials Checklist For Digital Signage Installation include:

• Stud Finder, Laser Level, Tape Measure, Pencil Or Marker
• Drill/Driver With Bits, Impact Driver, Socket Set, Torque Wrench
• Appropriate Anchors And Bolts By Substrate, VESA Mount, Safety Cable
• Cable Raceways, Brush Plates, Velcro Ties, Grommets, Surge Protector Or UPS
• Personal Protective Equipment: Gloves, Safety Glasses, Hard Hat For Overhead Work

---

How to Prepare Tools and Materials Before Installation?

Preparation starts with assembling measurement, fastening, mounting, cabling, and safety gear so the crew can move from survey to secure mounting without delays.

Tools And Materials To Stage Before Installation include:

• Measurement And Layout Gear For Precise Marking
• Drilling And Driving Tools With Correct Bits And Sockets
• Manufacturer-Specified Anchors And Fasteners For The Substrate
• Rated VESA Mount Or Service Pop-Out Frame With Safety Latch
• Cable Management Items, Surge Protector, And Right-Size UPS
• Personal Protective Equipment Matched To The Work At Height

---

How to Verify the Site and Substrate Before Drilling?

Verification prevents rework by confirming power, network, clearances, and structure before a single hole is drilled.

Pre-Drill Verification Items For Digital Signage Installation include:

• Power Availability: Dedicated Outlet Within Reach With Correct Voltage And Ground
• Network Path: Ethernet Drop Preferred; Wi-Fi RSSI At Least −60 dBm If Wireless
• Safety Clearances: Code-Compliant Egress, Mounting Height, And ADA Protrusion
• Substrate Identification: Wood Stud, Steel Stud, CMU/Concrete, Or Gypsum Over Studs
• Load Calculation: Display Weight Plus Mount Plus 25% Safety Margin
• VESA Pattern Match: Bolt Pattern, Screw Length, And Any Required Spacers

Table: Substrate, Recommended Anchor/Fastener, And Notes

Substrate	Recommended Anchor/Fastener	Notes
Wood Stud	Lag Bolts Per Mount Spec	Drill Pilot Holes; Hit Center Of Stud
Steel Stud	Toggle Bolts Or Rated Anchors	Use Backing Plate Where Allowed
CMU/Concrete	Expansion Anchors Or Sleeves	Vacuum Dust; Respect Edge Distance
Gypsum Only	Do Not Mount	Hit Studs Or Add Backing/Subplate

---

How to Mount and Hang the Display Step by Step?

Mounting of a signage display follows a repeatable sequence that protects the structure, the equipment, and the crew.

1. Mark And Level: Mark the top line, find stud centers, and level the wall plate.
2. Pre-Drill And Fasten: Drill pilot holes to specification and drive bolts to manufacturer torque.
3. Prepare Cables: Pre-run HDMI/DP, Ethernet, and power; add labels and strain relief.

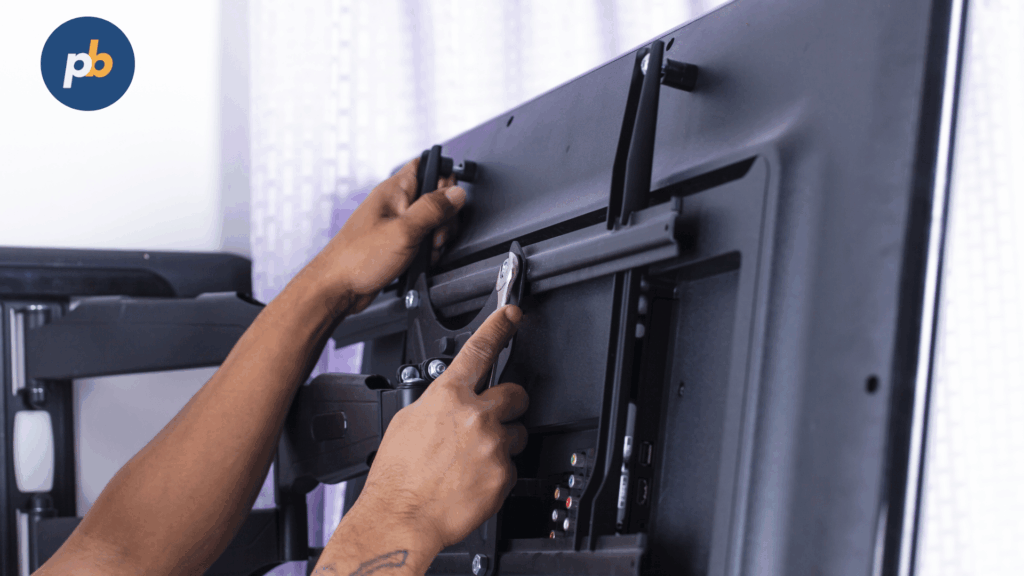

4. Attach Brackets To Display: Use correct VESA screws and spacers as required by the datasheet.

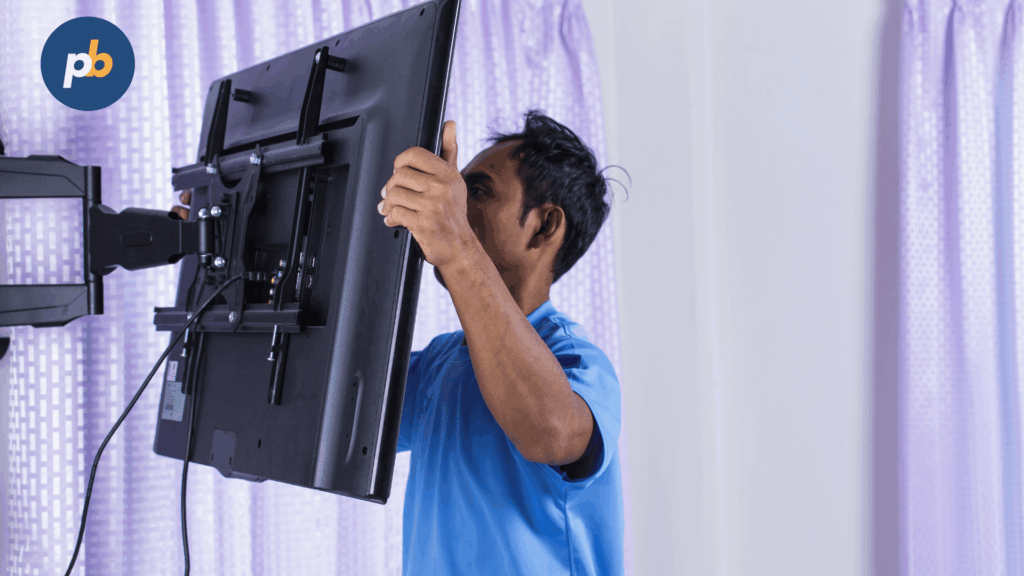

5. Hang And Secure: Lift with two persons; engage safety latches; add a secondary safety cable if supported.
6. Dress Cables: Route through raceways or brush plates; avoid sharp bends and power-signal co-routing.
7. Power-On Test: Confirm input selection, EDID/HDCP handshake, and audio if used.
8. Commission Settings: Set language and time, configure “Power On After AC” behavior, apply brightness profile, and disable local OSD buttons if supported.

---

How to Calibrate and Finalize Settings on Day One?

Day-one calibration locks in legibility and consistency by setting luminance, color, motion, and care features before handoff.

Initial Display Calibration And Settings For Digital Signage include:

• Brightness Target Matched To Ambient Light And Auto-Brightness Enabled If Available
• Neutral Picture Mode With Color Temperature Near 6500 K For Consistency
• Motion Processing Disabled To Preserve Text Clarity In Tickers And UI
• Pixel Shift And Panel Refresh Enabled On OLED To Reduce Retention Risk
• Local OSD And IR Control Locked When CMS Or Player Manages Power And Inputs

---

How to Install Mounts for a Digital Display (Wall, Ceiling, Kiosk, Window)?

Mounts are installed by selecting the correct form factor for the scenario, observing ADA protrusion limits, using micro-adjust plates for multi-panel walls, employing rated hanging kits for windows and ceilings, and applying anti-tip practices for freestanding kiosks and totems.

Torque And Safety Checklist For Mount Installation include:

• Correct Bit Size And Pilot Holes Per Anchor Specification
• Driver Aligned Square To Surface To Prevent Over-Reaming
• Torque Wrench Used Where Manufacturer Specifies Final Torque
• Safety Latches Engaged And Secondary Retention Installed Where Supported
• Cable Strain Relief Applied And Pinch Points Avoided
• Work Area Coned Or Barriered During Lift Operations

---

What Mount Type Should Be Picked for Each Scenario?

The mount type is picked by balancing service access, glare control, structure, and sightlines.

Common Digital Display Mount Types And Best-Fit Scenarios include:

• Low-Profile Wall For Slim Aesthetics Where Glare Is Controlled
• Tilt Wall For Down-Angle Aiming Above Eye Line To Reduce Reflections
• Micro-Adjust Or Video-Wall Pop-Out For Fine Leveling And Service Access

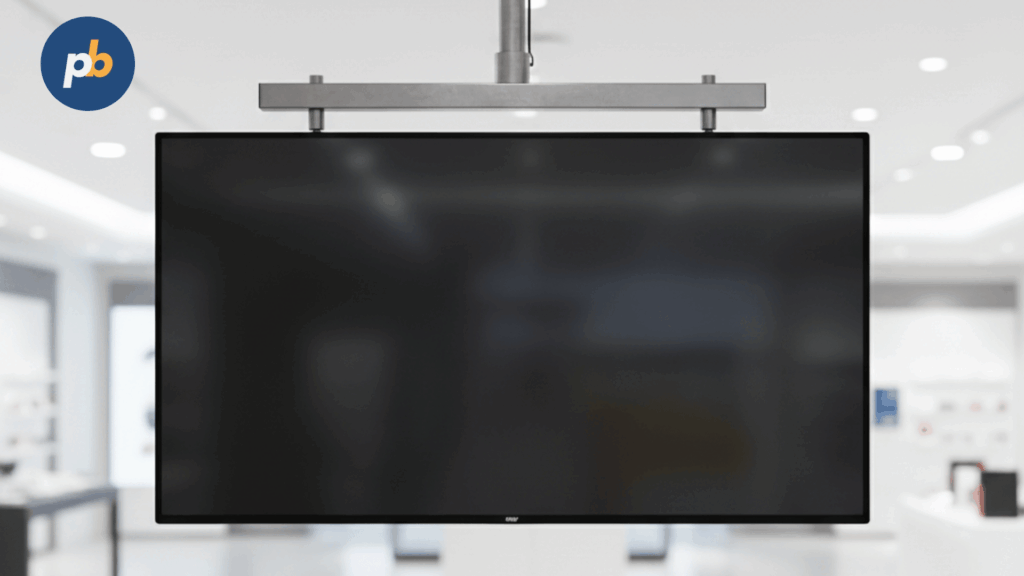

• Ceiling Or Hanging Kits When Walls Are Not Viable Or Sightlines Demand
• Window Suspension For High-Bright Displays With Dual Safety Cables
• Freestanding Kiosk Or Totem With Anti-Tip Base Or Floor Anchors And Ventilation

---

How to Schedule Content on Multiple Digital Signage Displays?

Scheduling of digital signage is achieved by organizing displays into logical groups, tagging devices for rules, building master playlists with dayparts and conditional logic, respecting local time zones and approvals, and validating playback with offline caching, screenshots, and proof-of-play.

Go-Live Readiness Checklist For Multi-Display Scheduling include:

• Device Groups And Naming Conventions Finalized And Documented
• Local Time Zones And Daylight-Saving Rules Verified On Devices
• Playlists And Dayparts Built And Reviewed Against Dwell Time
• Conditional Rules Defined For Weather, Inventory, Or Events
• Offline Caching Validated And Proof-Of-Play Enabled

---

How to Organize Displays Before Scheduling Starts?

Organization starts by grouping screens by purpose and environment, tagging for rule targeting, and naming consistently for support.

Pre-Scheduling Organization Patterns For Digital Signage include:

• Group By Location And Type Such As Retail/Window, Lobby/Info, Menu/Promo
• Tag Devices With Store Id, Region, Time Zone, Language, Orientation, And Brightness Class
• Name Devices Using Region-Site-Location-DisplayId For Traceability

---

How to Build Playlists and Dayparts That Scale?

Scalable playlists are built from master lists per group, with dayparts, frequency caps, and conditional rules tuned to dwell time and venue rhythm.

Playlist And Daypart Practices For Scalable Scheduling include:

• Create Master Playlists Per Group Such As Window, Menu, And Lobby
• Define Dayparts For Breakfast/Lunch/Dinner And Weekday/Weekend Windows
• Apply Frequency Caps Such As “Hero Promo Every Third Slot”
• Add Conditional Rules For Weather, Inventory, And Local Events
• Match Clip Durations To Dwell Time Such As 6–10 Seconds For Passersby And 15–30 Seconds For Queues

---

How to Handle Time Zones, Approvals, and Emergencies?

Operational discipline prevents surprises across regions and during incidents.

Operational Controls For Time Zones, Approvals, And Emergencies include:

• Local Device Time Scheduling With Verified DST Behavior
• Role-Based Approvals With Publish Windows And Rollback Versions
• Dedicated Emergency Channel With Highest Priority And Auto-Expire Policies

---

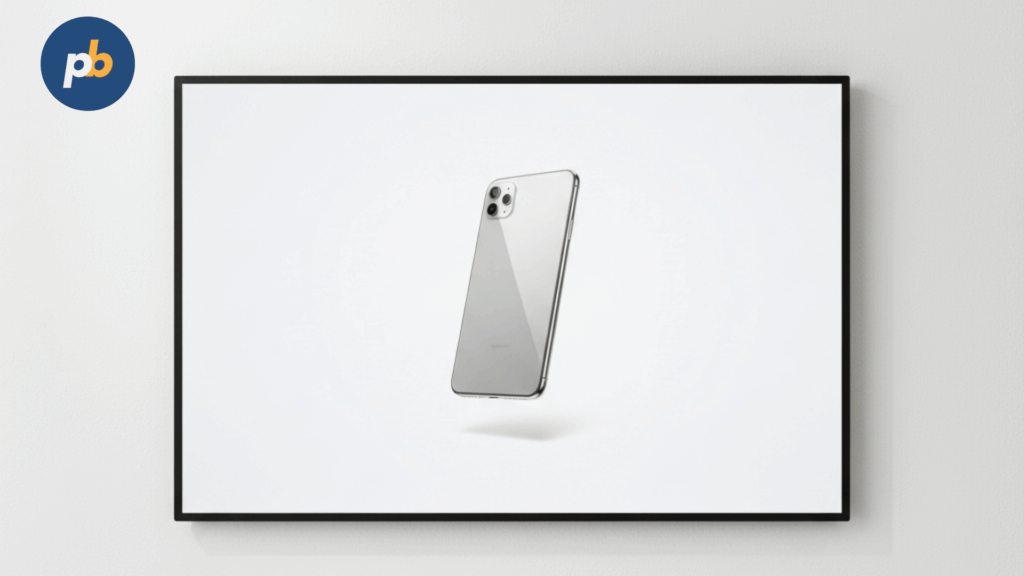

How Do Signage Display Size, Aspect Ratio, and Resolution Affect Legibility?

Size, aspect ratio, and resolution affect legibility by determining minimum letter height and stroke weight at the intended viewing distance; 4K helps dense dashboards and multi-widget canvases, while 1080p suffices for short-range menus. Portrait orientation favors directories and tall menus, stretched bars solve narrow sightlines, and safe zones keep text away from edges and seams.

Table 2 of 5 — Viewing Distance → Recommended Signage Display Size & Resolution (With LED Pitch Equivalents)

Closest Viewing Distance	Suggested Size	Flat-Panel Resolution	Approx. LED Pitch Equivalent
1–2 m	32–43″	1080p Or 4K For Fine UI	0.7–1.2 mm
2–3 m	43–55″	1080p/4K	1.2–1.9 mm
3–4 m	55–65″	4K	2.0–2.5 mm
4–6 m	65–86″	4K	2.6–3.9 mm
6–10 m	86″+ Or LED Wall	4K	4.0–6.9 mm
10 m+	LED Wall	Pitch-Based	8.0 mm+

Rotation And EDID Cautions for a Signage Display include:

• Verify Portrait Support And Firmware Orientation
• Maintain Ventilation Gaps For Tilt/Portrait
• Lock EDID Profiles To Prevent “No Signal” Events
• Keep Critical Text Outside Title/Action Safe Areas

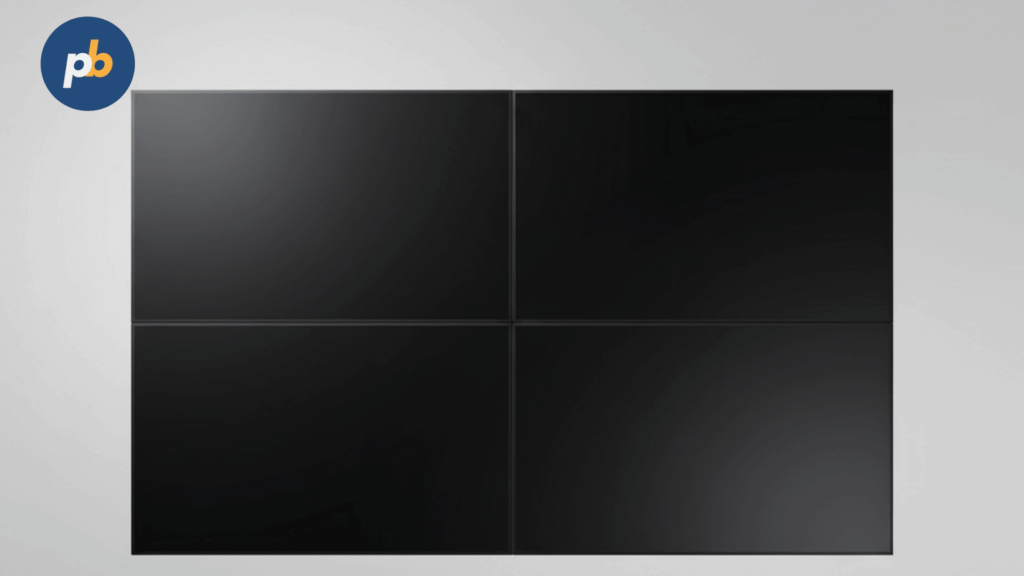

• Enable Bezel Compensation On Tiled LCD Walls

---

What Signage Display Orientation and Safe Areas Prevent Cut-Offs?

Portrait-safe panels with OSD lock, correct input mapping, and content safe zones prevent cut-offs, while bezel compensation on tiled walls and content remapping on LED keep critical text away from seams. Documented templates and device profiles make these protections repeatable across a fleet.

Orientation Checklist for a Signage Display include:

• Confirm Portrait Certification And Cooling Path
• Set Input And EDID Profiles Per Orientation
• Apply Bezel Compensation Or LED Remapping
• Lock OSD And Disable Consumer “Eco” Behaviors
• Validate Templates With Title/Action Safe Margins

---

How Bright Should a Signage Display Be and Which Glass/Coating Improves Visibility?

Brightness should track ambient light and reflections: 350–700 nits for most interiors, 1,500–3,500 nits for windows and bright lobbies, and 3,500–5,000+ nits for direct sun; anti-reflective (AR) glass usually improves effective contrast more than anti-glare (AG) alone, and auto-dimming preserves readability while saving energy. High-TNI panels and proper ventilation prevent window blackening.

Table 3 of 5 — Environment → Recommended Nits & Glass/Coating for a Signage Display

Environment	Recommended Brightness	Optics & Glass	Notes
Indoor Office/Retail	350–700 nits	Low-Haze Or AR	Prioritize Uniformity Over Peak Nits
Bright Lobby/Atrium	700–1,000 nits	AR Laminated	Manage Reflections From Stone/Glass
Window-Facing	1,500–3,500 nits	AR Laminated, High-TNI	Plan Auto-Dimming And Sun Studies
Outdoor Indirect	2,000–3,000 nits	AR Laminated, IP/IK	Add Surge And Filtration
Outdoor Direct Sun	3,500–5,000+ nits	AR Laminated, IP/IK	Use Heat Exchangers Or Active Cooling

Brightness Scheduling Tips for a Signage Display include:

• Use Ambient-Light Sensors With Upper/Lower Bounds
• Apply Daypart Schedules For Night Dimming
• Favor AR Glass To Reduce Required Nits
• Keep UI High-Contrast With Bold Stroke Weights
• Audit Power Draw And Tune Targets Quarterly

---

How Do Operating Temperature and TNI Protect a Signage Display at Windows?

Operating temperature ranges and TNI (blackening threshold) protect window-facing screens by preventing liquid-crystal darkening or OLED stress under sunload; proper enclosure ventilation, clean fan filters, and slightly angled placement away from direct rays extend life and preserve uniformity.

Sun-Exposure Checklist for a Signage Display include:

• Confirm TNI/Blackening Specs For Panels Near Glass
• Conduct Seasonal Sun-Path And Glare Studies
• Provide Active Cooling And Cleanable Filters
• Use AR Laminated Glass With UV Mitigation
• Angle Screens To Minimize Direct Solar Hits

---

---

How Should Connectivity and Control Be Set Up for a Signage Display?

Connectivity and control should be set up with wired video (HDMI/DP/USB-C alt-mode) kept within length limits or extended via HDBaseT/fiber, EDID/HDCP stabilized to avoid handshakes, and deterministic control via RS-232 or LAN APIs for power, input, and brightness scheduling; CEC can help, but enterprise IP control is more reliable at scale.

Signal-Path Preflight for a Signage Display include:

• Confirm Cable Grades And Max Lengths By Format
• Lock EDID Profiles And Validate Handshakes
• Script Power/Input/Brightness Over RS-232 Or IP
• Label Drops And Capture Port Maps In Docs
• Test Failover Paths And Reboot Sequences

---

Which Signage Display OSD and Firmware Settings Matter on Day One?

Day-one settings that matter are OSD lock, power-on behavior, input selection, brightness caps with auto-dimming bounds, color profile selection, and firmware pinning to a known good version; these prevent accidental on-screen menus, drift, or mid-flight surprises during rollouts.

OSD Baseline Template for a Signage Display include:

• Lock OSD And Disable Consumer Pop-Ups
• Set Power-On Source And Recovery Behavior
• Cap Brightness And Enable Ambient Sensor Bounds
• Select Color Temperature And Gamma Profile
• Pin Firmware Version And Document Build Numbers

---

How Do You Calibrate, Clean, and Maintain a Signage Display Over Time?

Calibration, cleaning, and maintenance keep fleets consistent and readable: brightness and white-point alignment across arrays, quarterly filter/glass care, semiannual torque checks, and cohort-based firmware updates maintain visual quality and uptime while protecting warranties.

Quarterly/Annual Maintenance Plan for a Signage Display include:

• Review Health/Screenshots And Ticket Exceptions
• Clean Filters, Vents, And AR Glass Surfaces
• Audit Luminance/White-Point And Re-Calibrate
• Re-Torque Mounts And Inspect Safety Retention
• Stage Firmware Updates And Validate Rollback

---

Which Common Issues Affect a Signage Display and How to Fix Them Fast?

Common issues resolve fastest by isolating source, transport, and sink: black screens or “no signal” often trace to EDID/HDCP instability or cabling, flicker to bandwidth limits or decode stress, and color shift to missing calibration; thermal throttling and aggressive ambient sensors also cause perceived dimness.

Triage Decision Tree Steps for a Signage Display include:

• Capture Remote Screenshot To Confirm Player Output
• Test Direct Laptop Feed To Eliminate Transport
• Load Known EDID Profile And Re-Seat Cables
• Check Thermals, Filters, And Fan Operation
• Re-Apply Color/White-Point Calibration Profile

---

Which Datasheet Specs Really Matter for a Signage Display Purchase?

The specs that really matter are sustained brightness (not only peak), ambient contrast, native contrast, color gamut (sRGB/DCI-P3), bit depth and chroma for text clarity, refresh/response for motion, viewing angle, operating temperature and TNI, IP/IK ratings, pixel policy, and warranty (on-site vs depot). These dictate real-world visibility, reliability, and support exposure.

“Read The Spec Like A Pro” Checklist for a Signage Display include:

• Prioritize Sustained Brightness And Ambient Contrast
• Verify Operating Temp Range And TNI/Blackening
• Confirm IP/IK Ratings For Semi/Outdoor Sites
• Check RS-232/LAN Control And API Documentation
• Review Pixel Policy, Warranty Length, And SLA Terms

---

Which Signage Display Is Best for the Use Case Today?

The best Signage Display should be chosen vendor-neutrally by matching goals, venue light, and service constraints; each “best-for-X” archetype below names the specification pattern that consistently performs, so procurement can shortlist models that meet the pattern.

What Are the Best Displays for Restaurant Digital Signage?

For restaurant display screens , the best displays are 500–700-nit 24/7 commercial LCDs for indoor menus, 1,500–3,500-nit high-brightness LCDs with AR glass for window promos, and 2,500–4,000-nit outdoor-rated units for drive-thru lanes—paired with RS-232/IP control and auto power-on for dependable dayparting.

Indoor Menu Board Specifications for Restaurant Digital Signage include:

• 43–55″, 500–700 Nits, 16:9 Aspect
• Matte Anti-Glare Panel With ≈25–28% Haze
• 24/7 Operation Rating And Portrait Safety
• Narrow Bezels And Uniform Color Across Sets
• Auto Power-On After AC And RS-232/CEC/IP Control

Crisp readability under ceiling lights and consistent multi-panel menus drive upsell and reduce ordering friction.

Window-Facing Promo Specifications for Restaurant Digital Signage include:

• 55–75″, 1,500–3,500 Nits With Ambient-Light Sensor
• Anti-Reflective Laminated Glass
• High-TNI/Blackening Threshold ≥105 °C
• Auto Dimming For Night Hours

High brightness fights sun glare without blackening while dimming curbs energy overnight.

Drive-Thru/Outdoor Menu Specifications for Restaurant Digital Signage include:

• 46–75″, 2,500–4,000+ Nits
• IP55–IP66 Weatherproof Enclosure
• IK10 Impact-Resistant Glass
• Active Thermal Management With Heater/Fans
• Surge And Lightning Protection, −30 °C To 50 °C Operation

Weather, vandal, and sun resistance sustain legibility and uptime.

Best Signage Display Model Picks for Restaurant Use include:

• Samsung QM55C/QH55B (500–700-nit indoor, non-glare, 24/7) for behind-counter menus.
• LG 55UH5N-E (500-nit, 28% haze) for color-accurate food imagery and portrait safety.
• Samsung OM55B (3,000-nit window-facing, IP5X) or LG XS4J (up to 4,000-nit) for storefront glass.
• Samsung OH55A-S (outdoor, ~3,500-nit, IP56) or LG 55XE4F-M (outdoor, 4,000-nit, IP56, IK10) for drive-thru.

---

What Are the Best Displays for Gyms Digital Signage?

For gym digital signage, the best displays are 65–86″, 700–1,000-nit wide-angle LCDs for open floors, 55–65″, 500–700-nit 120 Hz-capable panels for studios and leaderboards, and sealed, IP-rated enclosures for pool or spa zones.

The Best Display Model Picks for Gym Use include:

• Sony BRAVIA BZ40L Series (55–85″, “Deep Black Non-Glare,” high brightness) for open floors and studios.
• Samsung QH/QHC/QHB Series (700-nit, non-glare, 24/7) for brightly lit cardio areas.

---

What Are the Best Displays for Café Digital Signage?

For cafés signage, the best displays are 43–50″, 400–600-nit matte panels near POS for close-range menus, 49–65″, 1,500–2,500-nit high-bright units with AR glass for street-facing windows, and 32–43″, 350–500-nit screens for queue and table promos with quiet, fanless players.

The Best Display Model for Café Use include:

• LG UH5N-E (500-nit, 28% haze) for menus near POS.
• Samsung OM55B or LG XS4J for street-facing windows needing 3,000–4,000-nit peaks.

---

What Are the Best Displays for Airport Digital Signage?

For airports signage, the best displays are 49–75″, 700–1,500-nit 24/7 panels with RS-232/IP control for FIDS and wayfinding, fine-pitch dvLED (≈1.2–2.5 mm) for large feature walls, and IP65+ outdoor units with surge protection for curbside and parking.

Best Display Model Picks for Airport Use include:

• Samsung QHC/QHB Series (700-nit, non-glare, 24/7, IP5X) for FIDS banks.
• Samsung OH55A-S or LG 55XE4F-M for outdoor curbside to meet IP/IK and high-nit needs.

---

What Are the Best Displays for Office Digital Signage?

For office digital signage, the best displays are 75–98″, 500–700-nit low-reflectance LCDs or 1.5–2.5 mm dvLED for lobby features, 86–110″ LCD/dvLED with low-latency ingest for all-hands, and 10–13″ PoE-powered ePaper/LCD for meeting-room doors with 32–43″ corridor directionals.

Best Sinage Display Model Picks for Office Use include:

• Sony BRAVIA BZ40L or Samsung QHC/QHB for lobbies and town-halls needing low reflectance and 700-nit readability.
• Joan 6 Pro or Joan 13 Pro ePaper room displays with optional PoE mounts for room signage

What Is the Best Signage Display for Storefront Windows and Bright Lobbies?

The best Signage Display for windows and bright lobbies is a 2,500–3,500-nit high-bright LCD with AR laminated glass, auto-dimming, high-TNI panel rating, and portrait certification, because this combination maximizes effective contrast while riding through sunload.

Spec Archetype for Window/Bright Lobby Signage Display include:

• 55–75″ 4K Panel With 2,500–3,500 Nits Sustained
• AR Laminated Glass And Low-Reflectance Finish
• High-TNI/Blackening Resistance And Active Cooling
• Auto-Dimming With Adjustable Bounds
• RS-232/LAN Control And OSD Lock

What Is the Best Signage Display for Outdoor Totems And Transit Shelters?

The best Signage Display for outdoor totems and shelters is a 3,500–5,000+-nit outdoor LCD in an IP55–IP66, IK08–IK10 enclosure with laminated AR glass, heaters/filters, and surge protection, because it balances readability with safety and uptime in harsh conditions.

Spec Archetype for Outdoor Totem/Transit Signage Display include:

• IP55–IP66 Enclosure With IK08–IK10 Impact Rating
• Laminated AR/UV Glass And Door Seals/Drains
• Active Thermal Management And Replaceable Filters
• Surge/Lightning Protection And Isolated Ground
• Remote PDU For Safe Reboots

What Is the Best Signage Display for QSR Menu Boards (Indoor)?

The best Signage Display for indoor QSR menus is a 500–700-nit 4K LCD with portrait safety, narrow bezels, and strong uniformity controls across sets, because menu legibility depends on consistent luminance and color across adjacent panels.

Spec Archetype for QSR Menu-Board Signage Display include:

• 43–55″ 4K With 500–700 Nits Sustained
• Portrait Certification And Thermal Pathing
• Narrow Bezels And Factory Uniformity Controls
• RS-232/LAN Control For Daypart Schedules
• Low-Haze Or AR Finish For Glare Control

What Is the Best Signage Display for Corporate Lobby Video Walls?

The best Signage Display for lobby walls is either a tiled LCD wall with micro-adjust frames and tight color/luminance tolerances or a fine-pitch LED (≤1.9 mm at 2–4 m) with front service and calibration tools, chosen by distance, budget, and reflectance.

Spec Archetype for Lobby Wall Signage Display include:

• LCD Wall With Bezel Compensation And Service Frames
• Or LED Wall ≤1.9 mm Pitch For 2–4 m Viewing
• Calibration Workflow For White-Point/Luminance
• Low-Reflectance Surfaces And Controlled Lighting
• Documented Color Drift And Recalibration Schedule

What Is the Best Signage Display for Shelf-Edge And Ultrawide Placements?

The best Signage Display for shelf-edge and ultrawide placements is a stretched LCD bar with low-glare finish, concealed cabling, and PoE-friendly peripherals, because adjacency and fixture fit are more valuable than raw pixel density.

Spec Archetype for Shelf-Edge/Ultrawide Signage Display include:

• Stretched Panel In Common Fixture Widths
• Low-Glare Finish And High Contrast UI
• Concealed Cable Paths And Bracket Standards
• PoE-Ready Peripherals (Scanner/Beacon)
• Templates With Safe Zones For Narrow Canvases

---

How Much Should You Budget for a Signage Display and What ROI Can Be Expected?

Budgets should include CapEx for the display, mounts/enclosures, and signal transport plus OpEx for energy, cleaning/calibration, and spares; windows and outdoor carry premiums for brightness, optics, and environmental ratings, while auto-dimming and AR glass reduce energy and extend life. ROI typically comes from upsell and queue perception improvements, print elimination, and reduced maintenance risk.

Table 5 of 5 — Simple 3-Year TCO Model for a Signage Display (Illustrative)

Scenario	CapEx (Display + Mount)	OpEx (Energy + Service)	Key Risks	Mitigations
Indoor 55″ 600-nit	$$	$	Dust/Heat, Glare	AR Finish, Sensor Dimming, Cleaning Plan
Window 55″ 3,000-nit	$$$	$$	Sunload, Blackening	High-TNI, AR Laminated, Active Cooling
Outdoor 55″ Kiosk	$$$$	$$$	Weather/Vandal, Power	IP/IK Enclosure, Surge, Filters, Remote PDU
3×3 LCD Wall	$$$$$	$$	Uniformity, Access	Micro-Adjust Frames, Calibration, Service Gaps

Cost Levers & Savings Tips for a Signage Display include:

• Right-Size Brightness And Add AR Optics Instead Of Overspec Nits
• Use Ambient Sensors And Daypart Dimming To Cut Power
• Standardize Sizes/Mounts For Volume Pricing And Spares
• Specify Commercial Warranties To Avoid Out-Of-Scope Failures
• Plan Service Access To Shorten Truck-Roll Time

---

What Compliance, Accessibility, and Safety Rules Apply to a Signage Display?

Compliance and safety rules include ADA protrusion limits (≤4″ within 27–80″ above finished floor), egress clearances, luminance/glare considerations near roads, seismic/wind factors for mounts, tempered or laminated glass choices, and cleaning chemical safety; documenting these at design time prevents costly rework.

Compliance Checklist for a Signage Display include:

• Verify ADA Protrusion And Mounting Heights
• Preserve Egress Widths And Door Swing Areas
• Assess Luminance/Glare Near Traffic Sightlines
• Engineer Seismic/Wind Loads And Secondary Retention
• Select Tempered Or Laminated Glass For Impact Safety
• Specify Approved Cleaners For AR/AG Surfaces

---

What FAQs Do Teams Ask About a Signage Display?

Teams ask pragmatic, distance- and environment-driven questions that map directly to the specification patterns above; quick answers keep projects on track and expectations aligned.

Common FAQs for a Signage Display include:

Do 4K Panels Beat 1080p At All Distances?

4K Helps Dense Dashboards And Large Canvases; 1080p Suffices For Short-Range Menus

How Bright Should A South-Facing Window Be?

2,500–3,500 Nits With AR Laminated Glass And Auto-Dimming

Can Portrait Be Used Safely?

Yes, When The Panel Is Portrait-Certified With Verified Cooling Path And OSD Lock

How To Avoid Burn-In Or Retention?

Rotate Elements, Use Pixel Shift/Compensation, And Limit Static Logos

What Pixel Policy Is Acceptable On Walls?

Class-Based Policies With Tight Center-Area Thresholds And DOA Swap

How Often Should A Wall Be Calibrated?

Audit Quarterly For Luminance/White-Point; Re-Calibrate At Drift Thresholds

Can Power Be Scheduled Via CEC Or RS-232?

Yes; Prefer RS-232/LAN For Deterministic Control At Scale

Takeaway

Selecting the right digital signage display starts with understanding your environment — indoor, outdoor, or window-facing — then matching size, brightness, resolution, and mounting options to your audience’s viewing distance and dwell time. Specs like nit rating, refresh rate, and connectivity directly impact visibility and uptime, so choosing a commercial-grade panel is critical for reliability.

Once the display is chosen, PosterBooking helps you get the most out of it by letting you schedule and update content instantly from a single cloud dashboard — turning your hardware investment into a dynamic communication tool.

• Facebook
• Instagram
• LinkedIn
• YouTube
